[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASRock board, 244 x 244 mm, 8 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

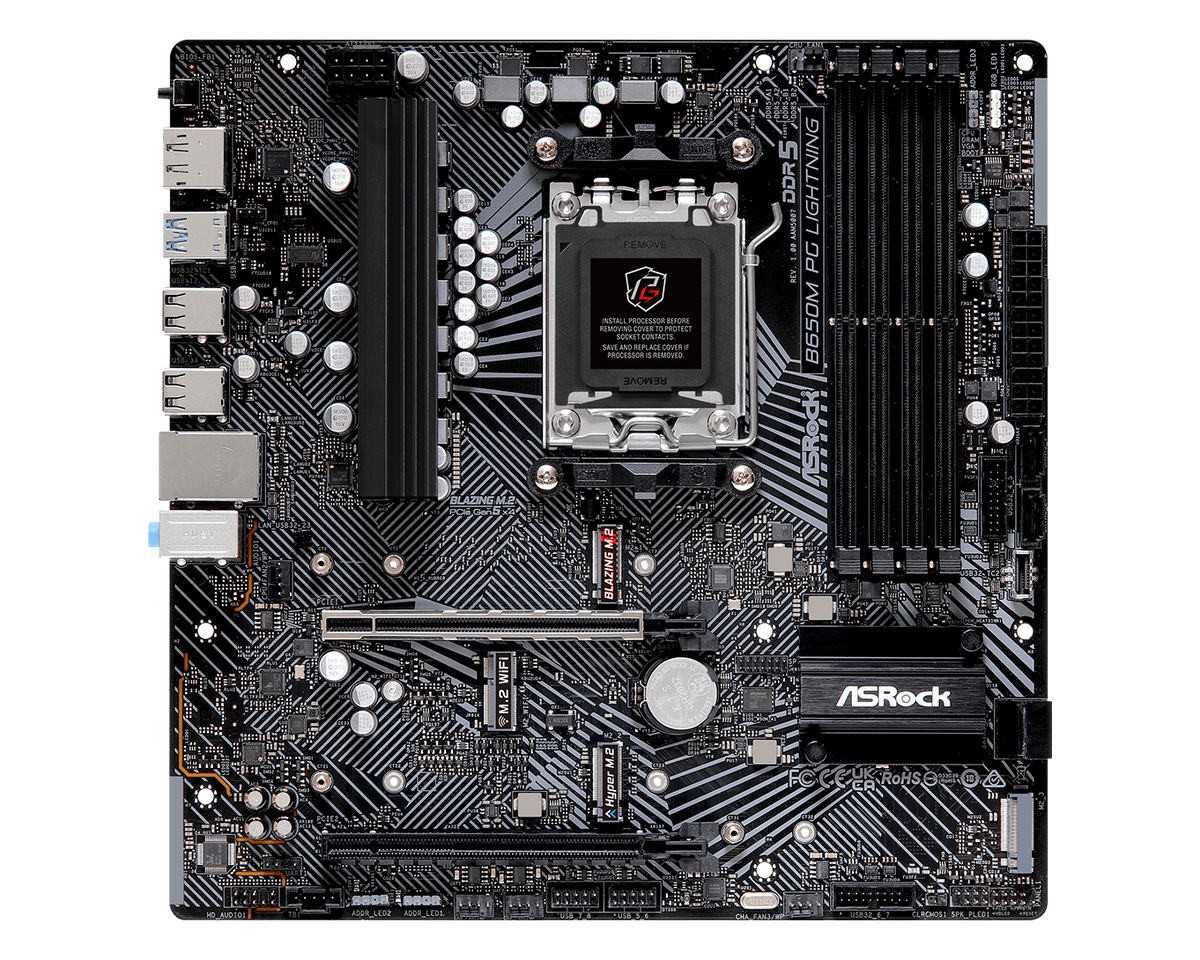

The ASRock B650M PG Lightning is an AM5 mATX motherboard built on AMD's B650 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots and 2.5GbE LAN.

  • Platform AM5 · B650 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 7200 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 · 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Dragon RTL8125BG) · Realtek ALC897 audio
  • Rear I/O 8 USB (1x USB-A 10Gbps, 1x USB-C 10Gbps, 2x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI, 1x DisplayPort · BIOS flashback (Q-Flash Plus)

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 7200 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Dragon RTL8125BG
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ POWER ] SPEC·05
VRM Phases 6+2+1
[ PHYSICAL ] SPEC·06
Dimensions 244 x 244 mm
Color Black
Brand ASRock
Condition NEW
MFR Part B650M PG Lightning
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
