[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASRock board, 244 x 244 mm, 6 rear USB ports.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

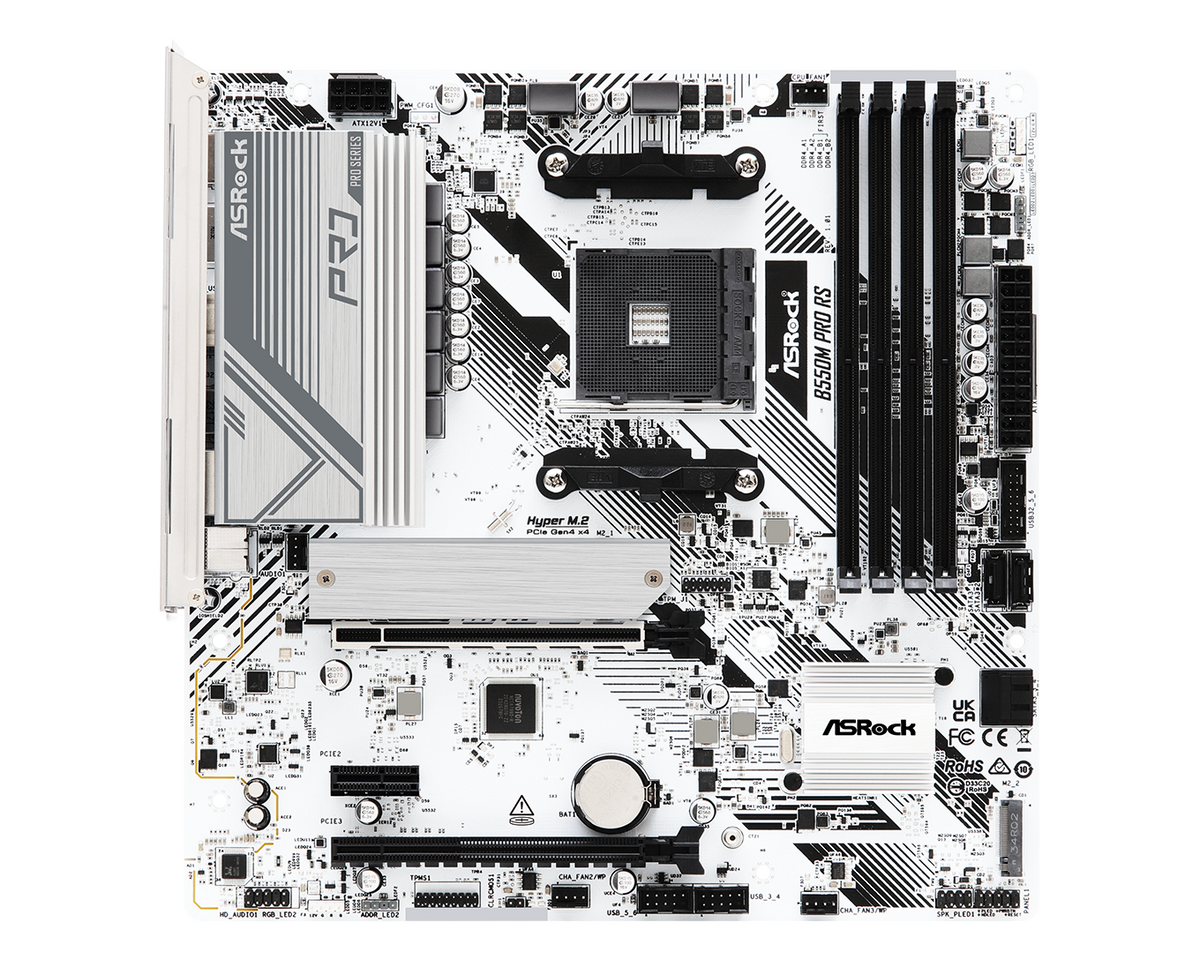

The ASRock B550M Pro RS is an AM4 mATX motherboard built on AMD's B550 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2 M.2 slots and 2.5GbE LAN.

  • Platform AM4 · B550 chipset
  • Memory 4x DDR4 DIMM · up to 128 GB
  • Connectivity 2.5GbE LAN (Dragon RTL8125BG) · Realtek ALC897 audio
  • Rear I/O 6 USB (4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 25 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor mATX
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4 up to 4733 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
M.2 Slots 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Dragon RTL8125BG
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color White
Brand ASRock
Condition NEW
MFR Part B550M Pro RS
[ SUPPORT ] SPEC·06
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
