ASRock board, 170 x 170 mm, 6 rear USB ports.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

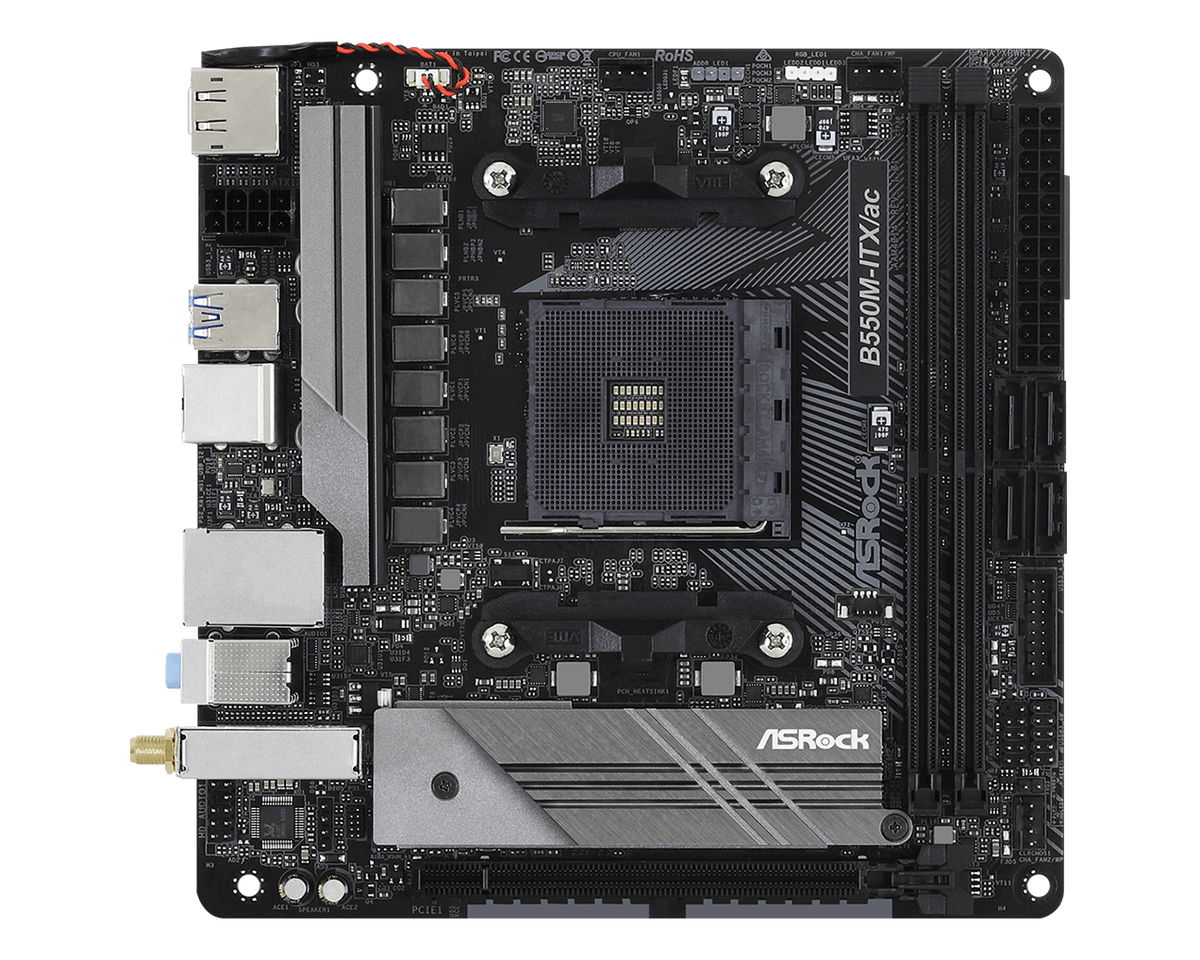

The ASRock B550M-ITX/ac is an AM4 Mini-ITX motherboard built on AMD's B550 chipset, with 2 DDR4 DIMM slots for up to 64 GB, 1GbE LAN and Wi-Fi 5.

  • Platform AM4 · B550 chipset
  • Memory 2x DDR4 DIMM · up to 64 GB
  • Connectivity 1GbE LAN (Realtek RTL8111H) · Wi-Fi 5 · Bluetooth 4.2 · Realtek ALC887 audio
  • Rear I/O 6 USB (2x USB 2.0, 3x USB-A 5Gbps, 1x USB-C 5Gbps) · 1x HDMI, 1x DisplayPort

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
2 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 27 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor Mini-ITX
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 2
Max Memory 64 GB
Max OC Speed DDR4 up to 4733 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
M.2 Slots 1x M.2 (1x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek RTL8111H
Wi-Fi Wi-Fi 5
Bluetooth 4.2
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC887
[ PHYSICAL ] SPEC·05
Dimensions 170 x 170 mm
Color Black
Brand ASRock
Condition NEW
MFR Part B550M-ITX/ac
[ SUPPORT ] SPEC·06
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
