ASRock board, 305 x 244 mm, 8 rear USB ports, BIOS flashback (Q-Flash Plus).

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

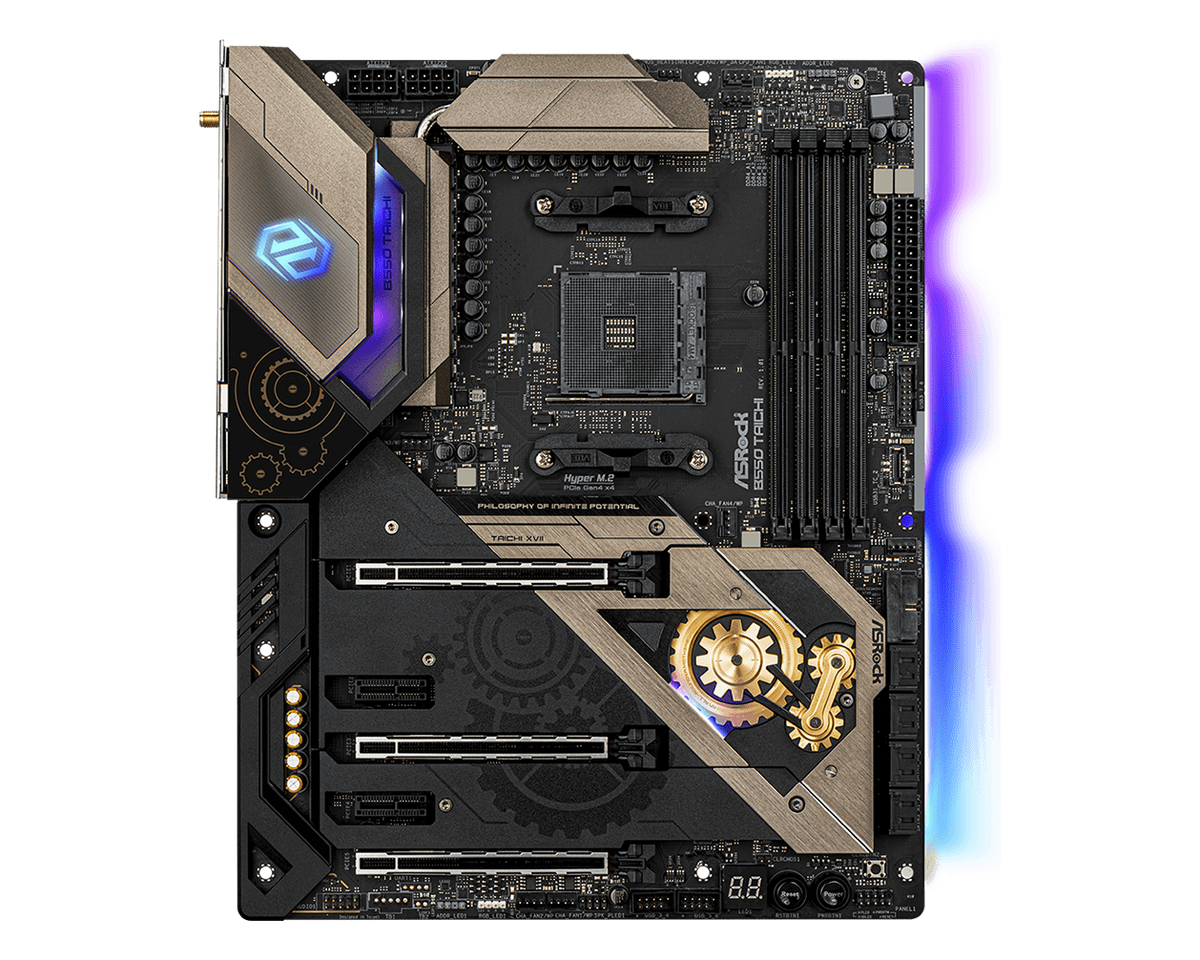

The ASRock B550 Taichi is an AM4 ATX motherboard built on AMD's B550 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2.5GbE LAN and Wi-Fi 6.

  • Platform AM4 · B550 chipset
  • Memory 4x DDR4 DIMM · up to 128 GB
  • Connectivity 2.5GbE LAN (Intel I225V) · Wi-Fi 6 · Bluetooth 5.2 · Realtek ALC1220 audio
  • Rear I/O 8 USB (1x USB-A 10Gbps, 1x USB-C 10Gbps, 4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort · BIOS flashback (Q-Flash Plus)

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 27 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor ATX
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4 up to 4733 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
M.2 Slots 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel I225V
Wi-Fi Wi-Fi 6
Bluetooth 5.2
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASRock
Condition NEW
MFR Part B550 Taichi
[ SUPPORT ] SPEC·06
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
