[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASRock unit, 2.5-slot, 298 mm long. Rated 190 W; ASRock recommends a 650 W supply.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

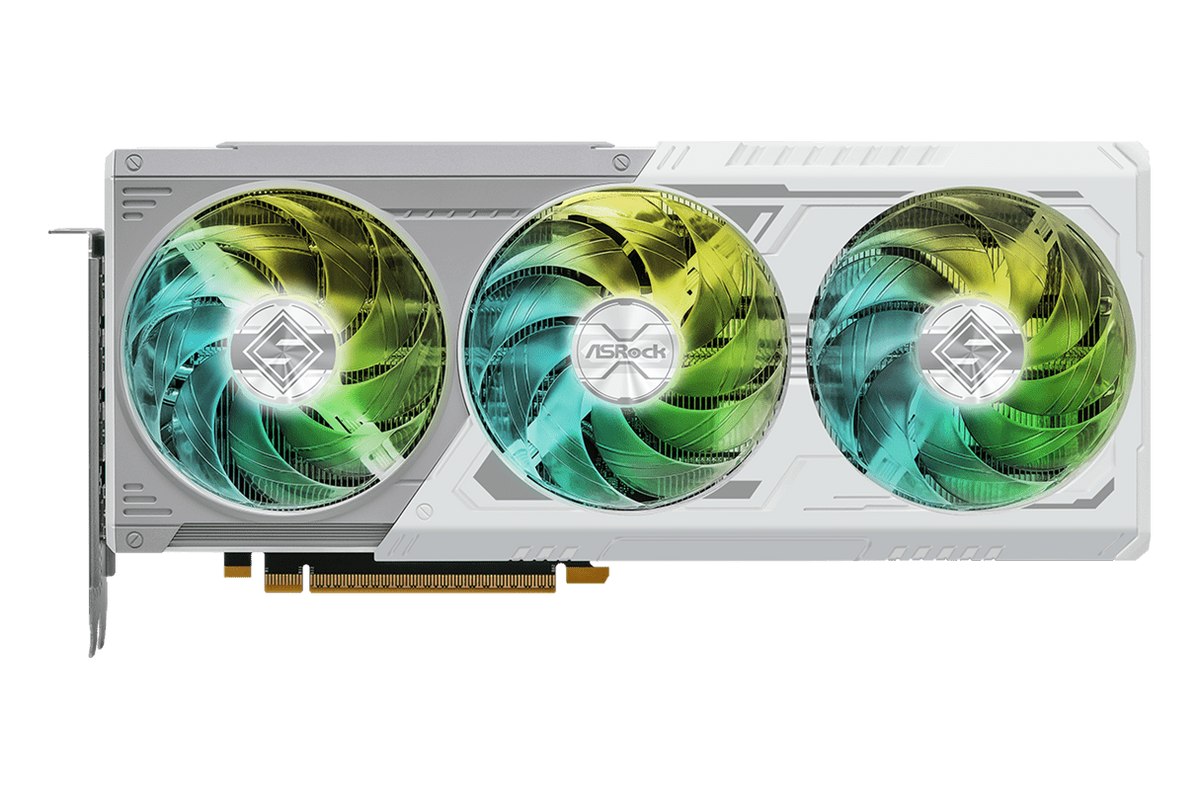

The ASRock STEEL LEGEND ARC B580 is a 12 GB GDDR6 graphics card built on Intel's ARC B580 with 20 Xe cores, a 2800 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 12 GB GDDR6 · 192-bit bus · 19 Gbps · 456 GB/s bandwidth
  • Cores 20 Xe cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2800 MHz boost
  • Interface PCIe 4.0 x8 · 1x HDMI 2.1a, 3x DisplayPort 2.1 · up to 4 displays at 7680×4320
  • Power 190 W board power · 2x 8-pin · 650 W recommended PSU

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2800 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
20
XE CORES
190 W
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor Intel
Series Arc B
Process Node TSMC N5
Xe Cores 20
Boost Clock 2800 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6
Memory Bus 192-bit
Memory Bandwidth 456 GB/s
Memory Clock 19000 MHz (19 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 190 W
Min PSU 650 W
Power Connectors 2x 8-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1a, 3x DisplayPort 2.1
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x8
Length 298 mm
Slot Width 2.5-slot
Dimensions 298 x 131 x 51 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
