MSI board, 305 x 244 mm, 10 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

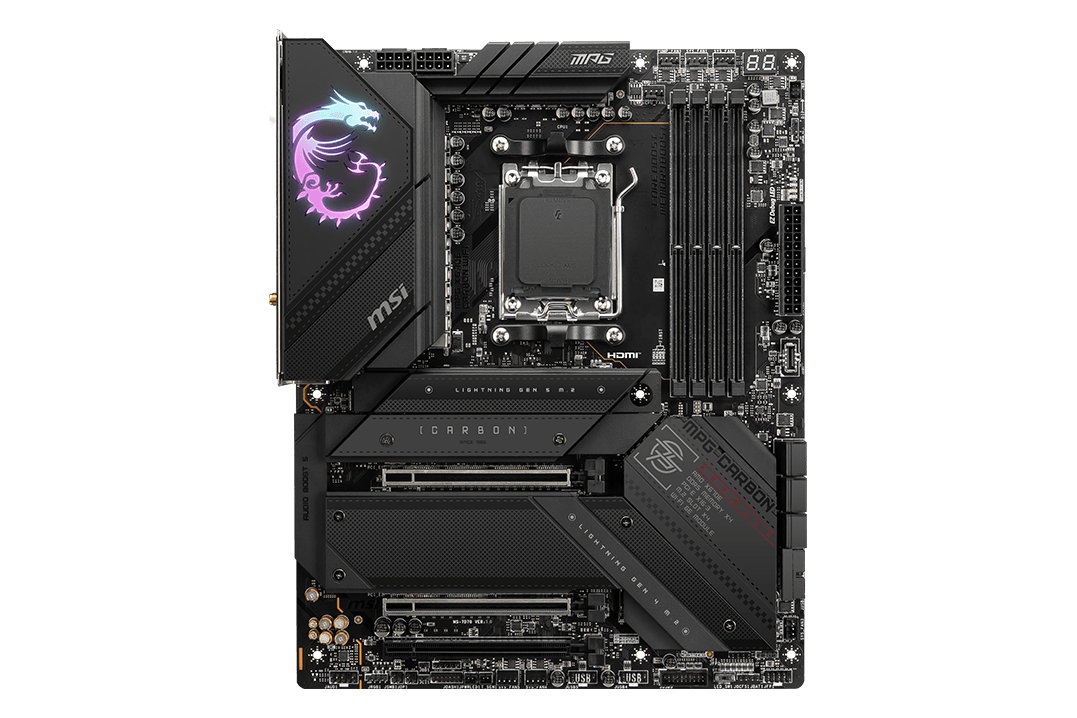

The MSI MPG X670E CARBON WIFI is an AM5 ATX motherboard built on AMD's X670E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM5 · X670E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 7800 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4 · 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0) · 6x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek RTL8125BG 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC4080 audio
  • Rear I/O 10 USB (1x USB-C 20Gbps, 6x USB-A 10Gbps, 1x USB-C 10Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort, 1x USB-C DisplayPort · BIOS flashback (Q-Flash Plus)

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X670E
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X670E
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 7800 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4
PCIe Gen 5.0
M.2 Slots 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek RTL8125BG 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 1x HDMI, 1x DisplayPort, 1x USB-C DisplayPort
Audio Realtek ALC4080
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MPG X670E CARBON WIFI
