MSI board, 305 x 277 mm, 15 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

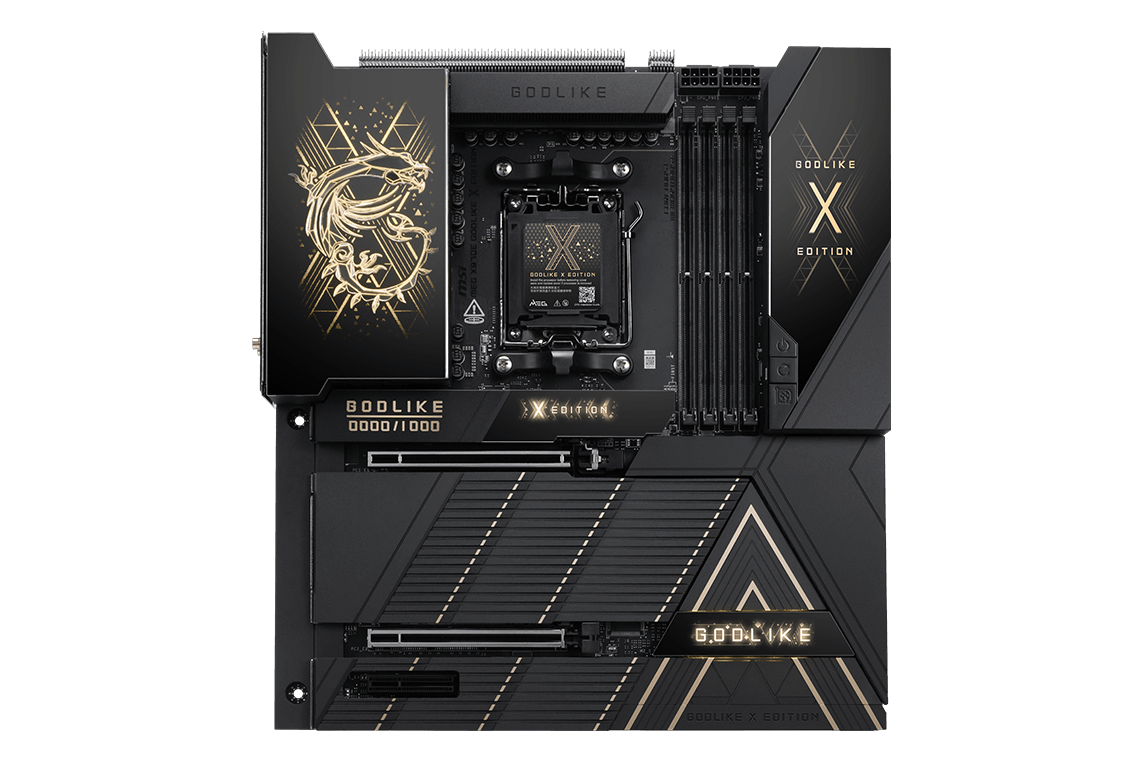

The MSI MEG X870E GODLIKE X EDITION is an AM5 E-ATX motherboard built on AMD's X870E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 7 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform AM5 · X870E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 9200 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4 · 7x M.2 (2x PCIe 5.0, 3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (Marvell AQC113CS 10GbE + Realtek 8126 5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC4082 audio
  • Rear I/O 15 USB (2x USB-C 40Gbps, 8x USB-A 10Gbps, 5x USB-C 10Gbps) · 2x USB-C DisplayPort · BIOS flashback (Q-Flash Plus)

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870E
CHIPSET
4 DIMM
MEMORY SLOTS
7 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870E
CPU Platform AMD
Form Factor E-ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 9200 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4
PCIe Gen 5.0
M.2 Slots 7x M.2 (2x PCIe 5.0, 3x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps, 5 Gbps
LAN Chip Marvell AQC113CS 10GbE + Realtek 8126 5GbE
Wi-Fi Wi-Fi 7
Bluetooth 5.4
Display Outputs 2x USB-C DisplayPort
Audio Realtek ALC4082
[ PHYSICAL ] SPEC·05
Dimensions 305 x 277 mm
Color Black
Brand MSI
Condition NEW
MFR Part MEG X870E GODLIKE X EDITION
