[ UNIT BRIEFING ]

// ORBITAL INVENTORY

MSI board, 305 x 244 mm, 10 rear USB ports. Supports AMD Ryzen 8000 / 7000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

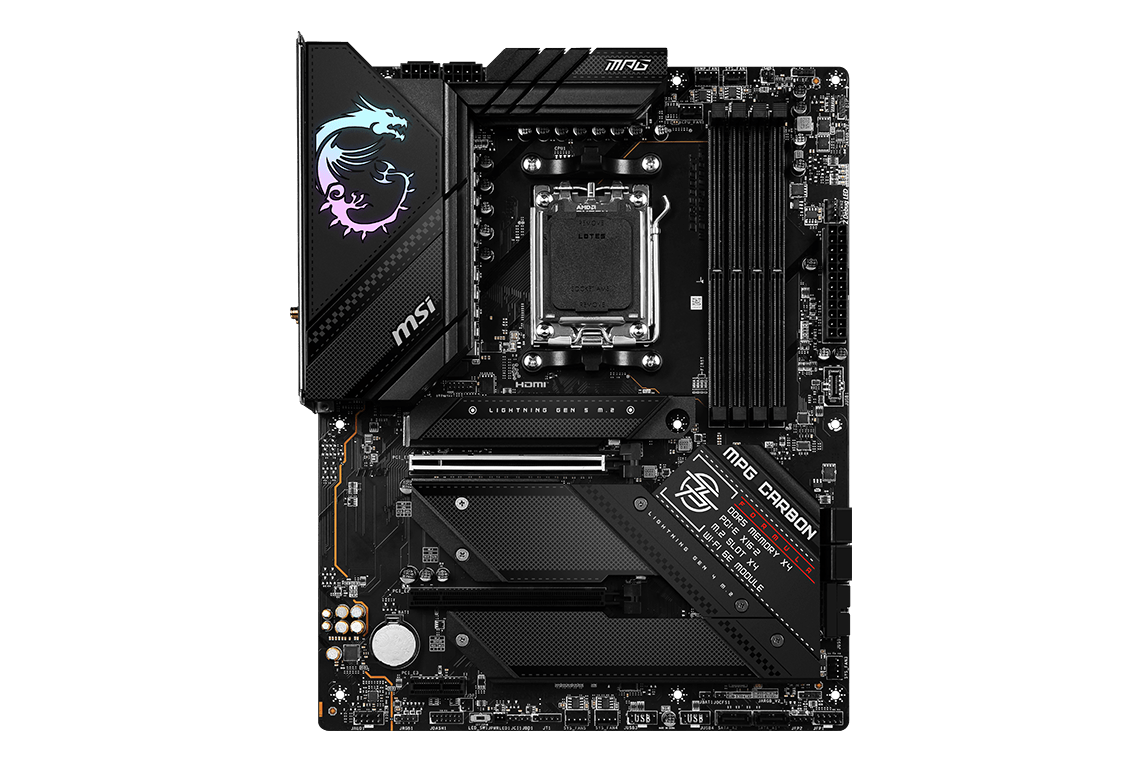

The MSI MPG B650 CARBON WIFI is an AM5 ATX motherboard built on AMD's B650 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM5 · B650 chipset · AMD Ryzen 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 7800 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 · 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) · 6x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek RTL8125 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC4080 audio
  • Rear I/O 10 USB (1x USB-C 20Gbps, 7x USB-A 10Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 8000 / 7000 Series
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 7800 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1
PCIe Gen 4.0
M.2 Slots 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek RTL8125 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC4080
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MPG B650 CARBON WIFI
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
