[ UNIT BRIEFING ]

// ORBITAL INVENTORY

MSI board, 305 x 244 mm, 13 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel Core Ultra (Series 2).

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

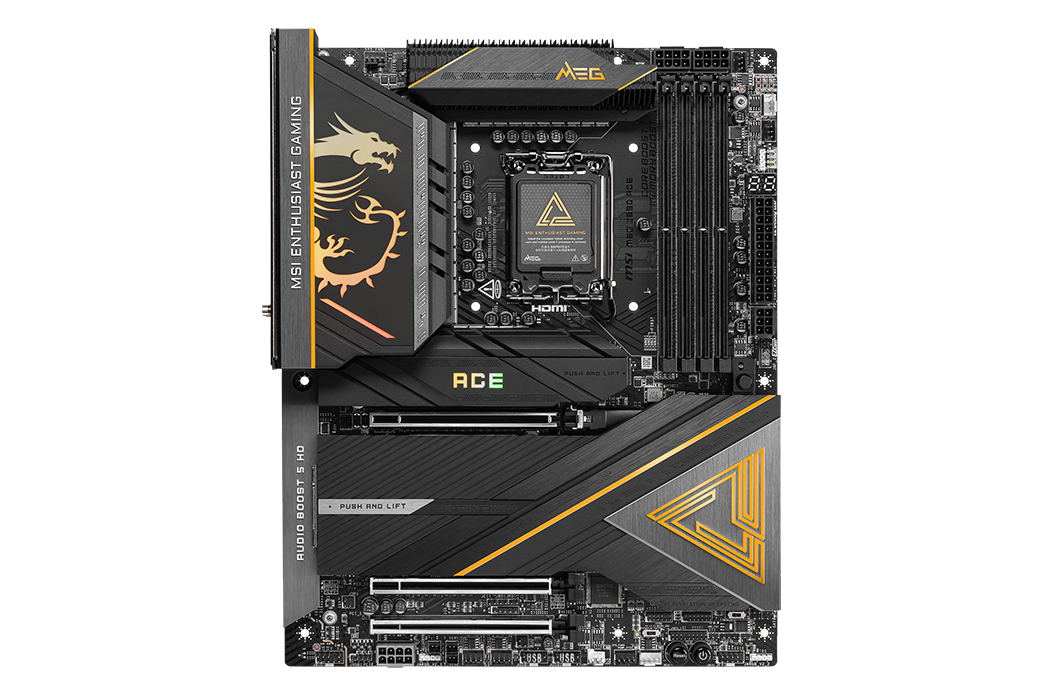

The MSI MEG Z890 ACE is an LGA1851 ATX motherboard built on Intel's Z890 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 5 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform LGA1851 · Z890 chipset · Intel Core Ultra (Series 2)
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 9200 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4 · 5x M.2 (2x PCIe 5.0, 3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (Marvell AQC113CS 10GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC4082 audio
  • Rear I/O 13 USB (11x USB-A 10Gbps, 2x USB-C 10Gbps) · 1x HDMI, 2x USB-C DisplayPort · BIOS flashback (Q-Flash Plus)

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
Z890
CHIPSET
4 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset Z890
CPU Platform Intel
Form Factor ATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 9200 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4
PCIe Gen 5.0
M.2 Slots 5x M.2 (2x PCIe 5.0, 3x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip Marvell AQC113CS 10GbE
Wi-Fi Wi-Fi 7
Wireless Chip Killer Wi-Fi 7 BE1750
Bluetooth 5.4
Display Outputs 1x HDMI, 2x USB-C DisplayPort
Audio Realtek ALC4082
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MEG Z890 ACE
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
