MSI board, 305 x 244 mm, 8 rear USB ports. Supports Intel Core Ultra (Series 2).

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

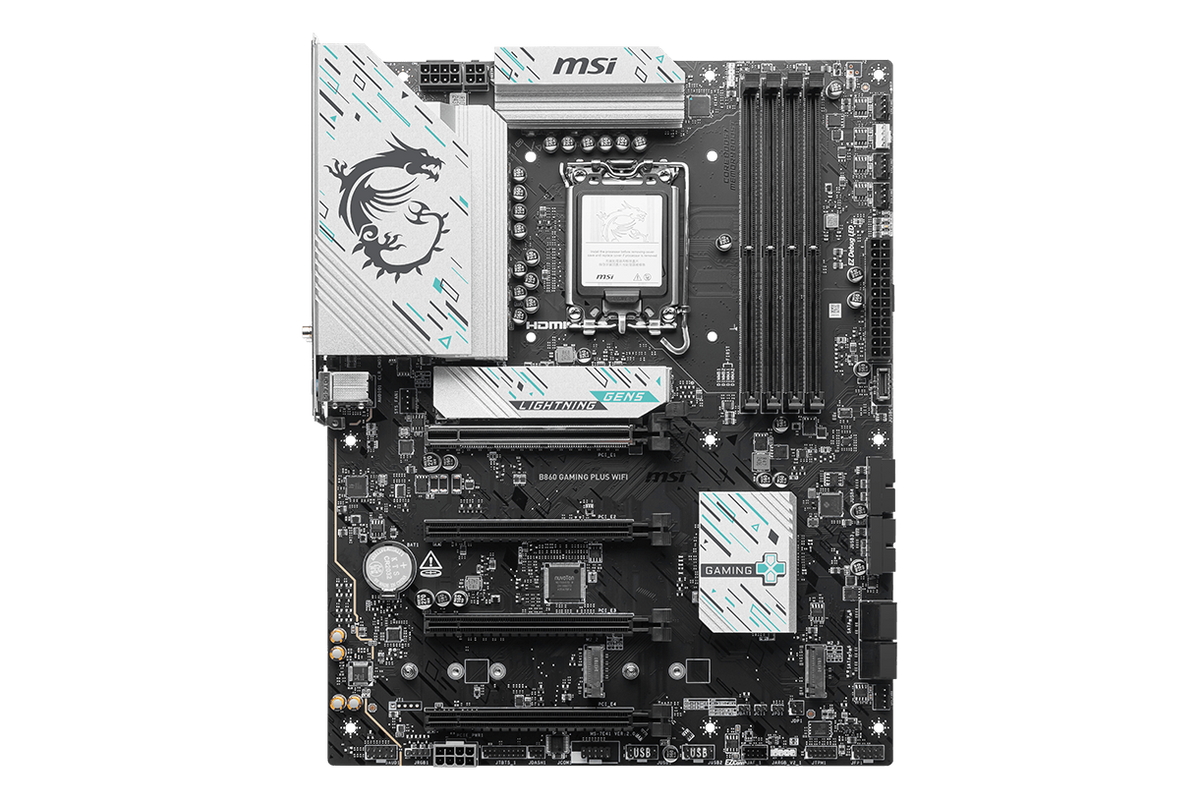

The MSI B860 GAMING PLUS WIFI is an LGA1851 ATX motherboard built on Intel's B860 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots, 5GbE LAN and Wi-Fi 7.

  • Platform LGA1851 · B860 chipset · Intel Core Ultra (Series 2)
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 8800 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 2x PCIe 4.0 x1, 1x PCIe 4.0 x4 · 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 5GbE LAN (Intel Killer E5000 5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC897 audio
  • Rear I/O 8 USB (2x USB-A 10Gbps, 2x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI, 1x DisplayPort, 1x USB-C DisplayPort

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
B860
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset B860
CPU Platform Intel
Form Factor ATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 8800 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x1, 1x PCIe 4.0 x4
PCIe Gen 5.0
M.2 Slots 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 5 Gbps
LAN Chip Intel Killer E5000 5GbE
Wi-Fi Wi-Fi 7
Wireless Chip Killer Wi-Fi 7 1750x
Bluetooth 5.4
Display Outputs 1x HDMI, 1x DisplayPort, 1x USB-C DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part B860 GAMING PLUS WIFI
