MSI board, 236 x 200 mm, 6 rear USB ports. Supports AMD Ryzen 3000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

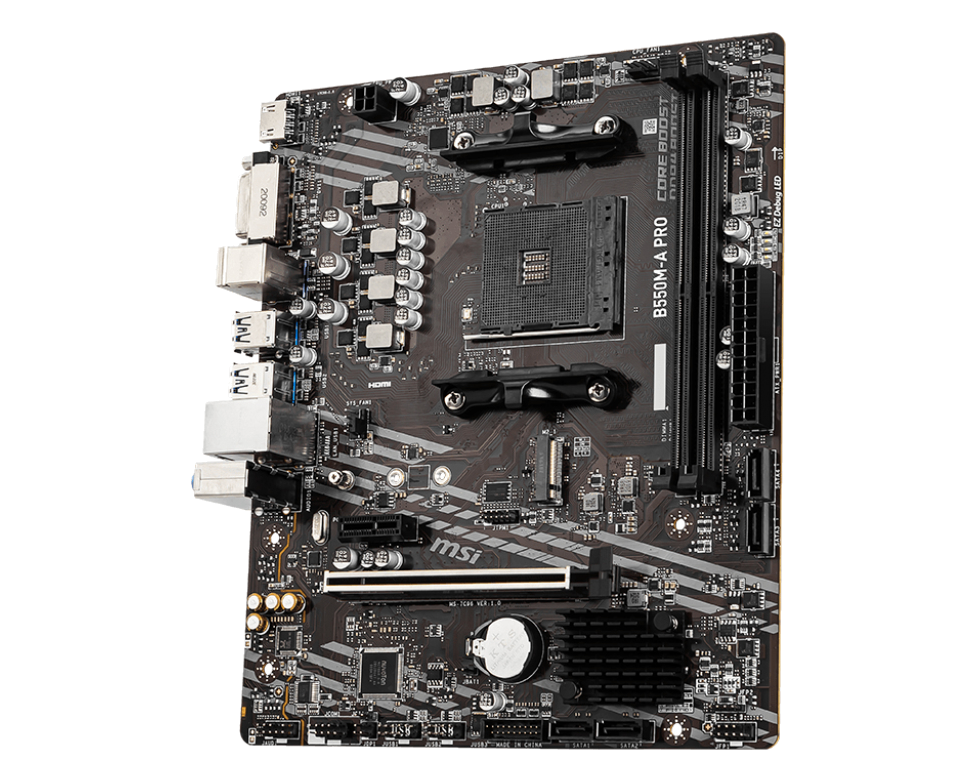

The MSI B550M-A PRO is an AM4 mATX motherboard built on AMD's B550 chipset, with 2 DDR4 DIMM slots for up to 64 GB, 1 M.2 slots and 1GbE LAN.

  • Platform AM4 · B550 chipset · AMD Ryzen 3000 Series
  • Memory 2x DDR4 DIMM · up to 64 GB · DDR4-1866 to 4600 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16 · 1x M.2 · 6x SATA 6Gb/s
  • Connectivity 1GbE LAN (Realtek RTL8111H) · Realtek ALC892 / Realtek ALC897 audio
  • Rear I/O 6 USB (4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
2 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 25 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 3000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 2
Max Memory 64 GB
Max OC Speed DDR4-1866 to 4600 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 1x M.2
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek RTL8111H
Wi-Fi None
Display Outputs 1x HDMI
Audio Realtek ALC892 / Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 236 x 200 mm
Color Black
Brand MSI
Condition NEW
MFR Part B550M-A PRO
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
