Gigabyte board, 170 x 170 mm, 8 rear USB ports, BIOS flashback (Q-Flash Plus).

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

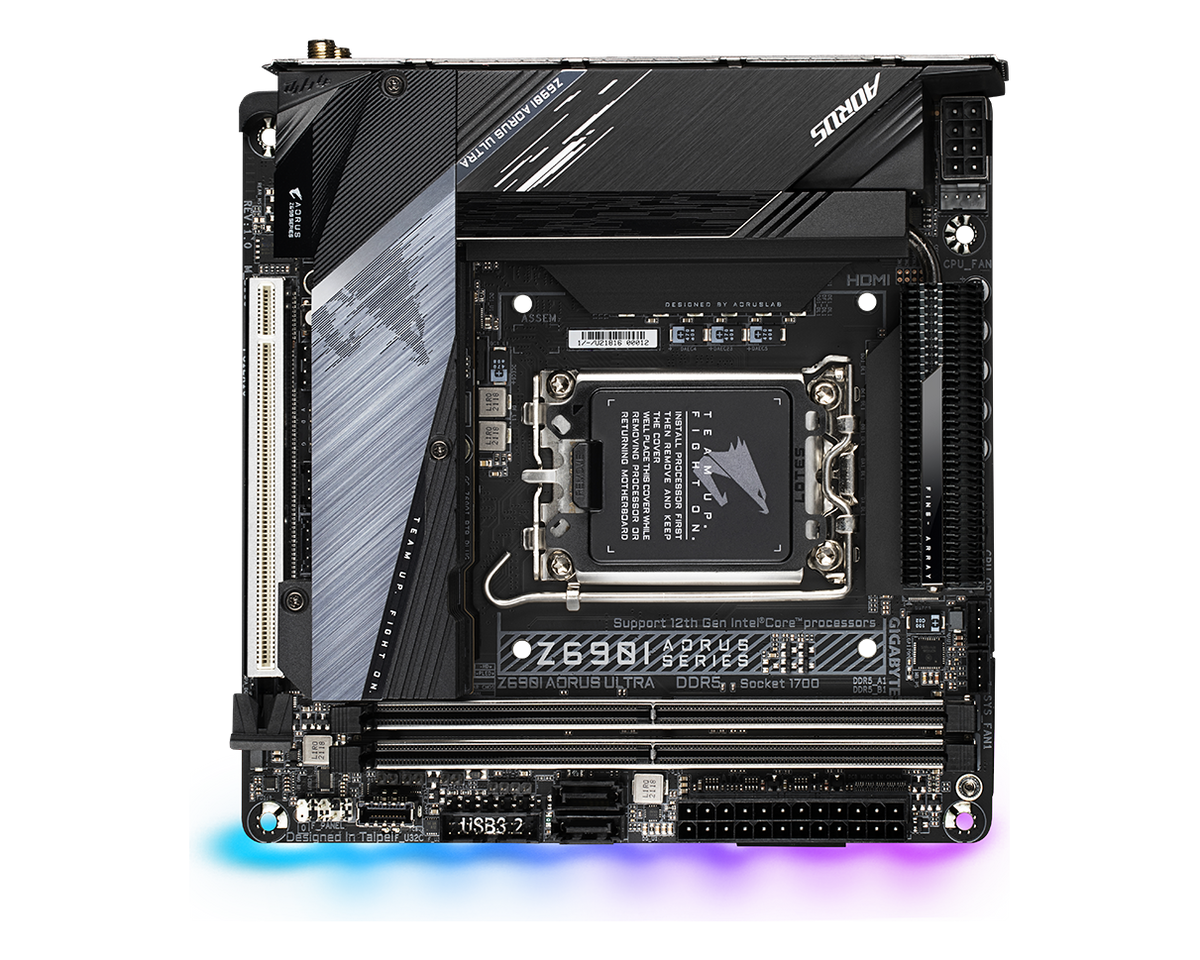

The Gigabyte Z690I AORUS ULTRA is an LGA1700 Mini-ITX motherboard built on Intel's Z690 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 6.

  • Platform LGA1700 · Z690 chipset
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5-4000 to 4800 MT/s
  • Expansion 1x PCIe 5.0 x16 · 2x M.2 (2x PCIe 4.0) · 2x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 6 · Bluetooth 5.2 · Realtek ALC4080 audio
  • Rear I/O 8 USB (1x USB-C 20Gbps, 3x USB-A 10Gbps, 2x USB-A 5Gbps, 2x USB 2.0) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z690
CHIPSET
2 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z690
CPU Platform Intel
Form Factor Mini-ITX
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5-4000 to 4800 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 2x M.2 (2x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 2x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 6
Wireless Chip Intel AX201:
Bluetooth 5.2
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC4080
[ PHYSICAL ] SPEC·05
Dimensions 170 x 170 mm
Brand Gigabyte
Condition NEW
MFR Part Z690I AORUS ULTRA
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
