Gigabyte board, 305 x 259 mm, 11 rear USB ports, BIOS flashback (Q-Flash Plus).

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

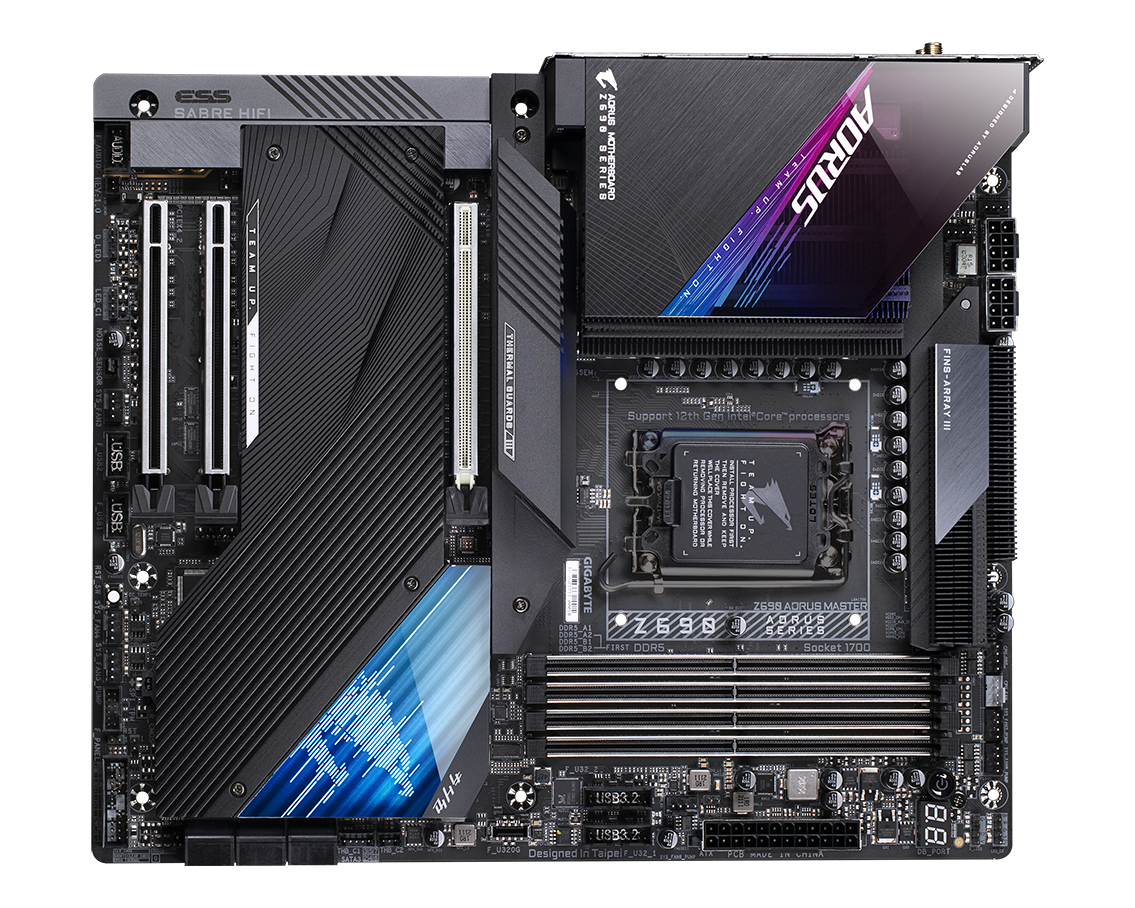

The Gigabyte Z690 AORUS MASTER is an LGA1700 E-ATX motherboard built on Intel's Z690 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 5 M.2 slots and 10GbE LAN.

  • Platform LGA1700 · Z690 chipset
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4000 to 4800 MT/s
  • Expansion 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 · 5x M.2 (4x PCIe 4.0, 1x PCIe 3.0) · 6x SATA 6Gb/s
  • Connectivity 10GbE LAN (Marvell AQtion AQC113C 10GbE) · Bluetooth 5.3 · Realtek ALC1220 audio
  • Rear I/O 11 USB (1x USB-C 10Gbps, 1x USB-C 20Gbps, 5x USB-A 10Gbps, 4x USB-A 5Gbps) · 1x DisplayPort · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z690
CHIPSET
4 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z690
CPU Platform Intel
Form Factor E-ATX
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4000 to 4800 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 2x PCIe 3.0 x16
PCIe Gen 5.0
M.2 Slots 5x M.2 (4x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip Marvell AQtion AQC113C 10GbE
Wi-Fi None
Wireless Chip WIFI Module
Bluetooth 5.3
Display Outputs 1x DisplayPort
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 259 mm
Brand Gigabyte
Condition NEW
MFR Part Z690 AORUS MASTER
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
