Gigabyte board, 170 x 170 mm, 6 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 5000 / 3000 / 2000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

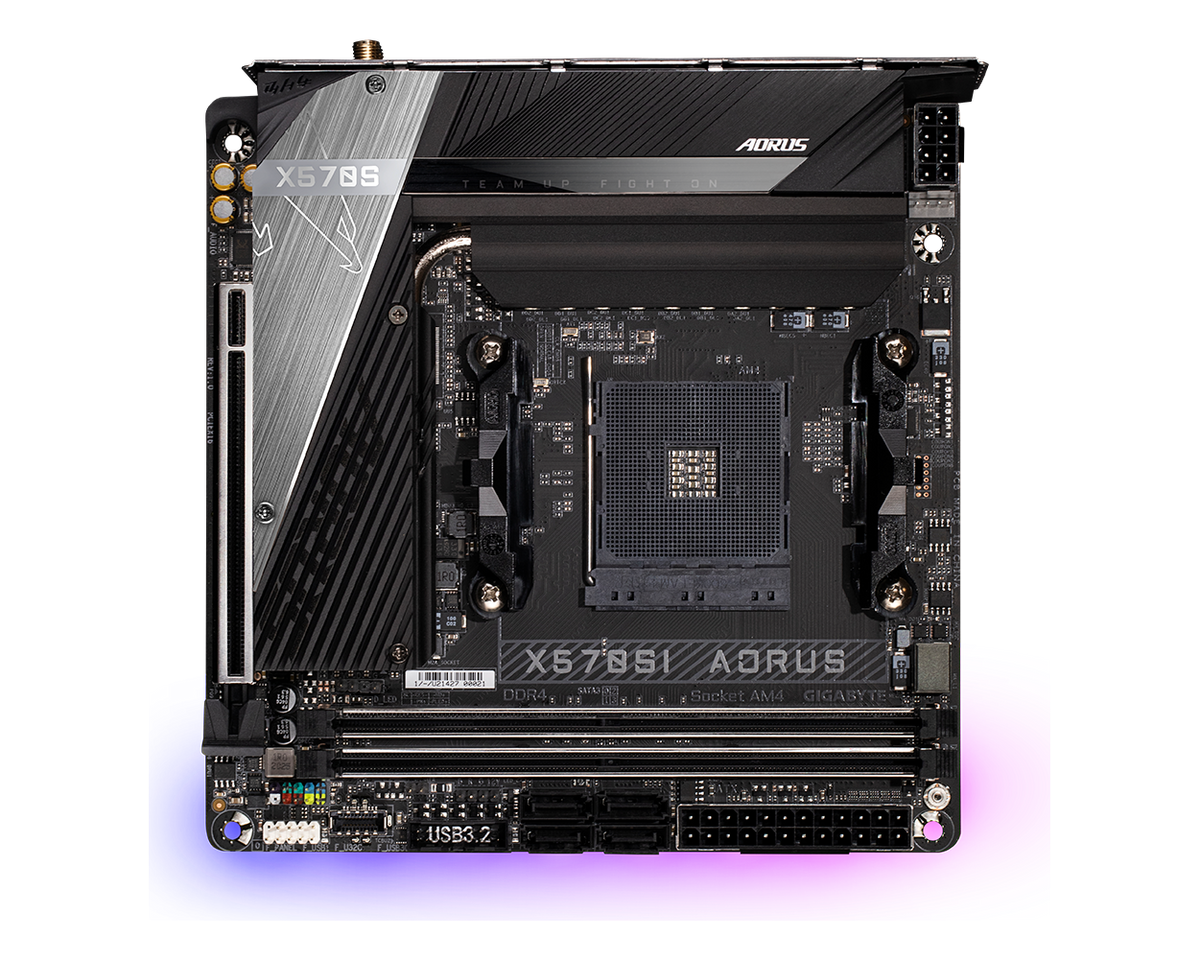

The Gigabyte X570SI AORUS PRO AX is an AM4 Mini-ITX motherboard built on AMD's X570 chipset, with 2 DDR4 DIMM slots for up to 64 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM4 · X570 chipset · AMD Ryzen 5000 / 3000 / 2000 Series
  • Memory 2x DDR4 DIMM · up to 64 GB · DDR4-2400 to 2933 MT/s
  • Expansion 1x PCIe 4.0 x16 · 2x M.2 (2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 6E · Bluetooth 5.2 · Realtek ALC1220 audio
  • Rear I/O 6 USB (1x USB-A 10Gbps, 4x USB-A 5Gbps, 1x USB-C 10Gbps) · 1x DisplayPort, 2x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
X570
CHIPSET
2 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset X570
CPU Platform AMD
Form Factor Mini-ITX
CPU Support AMD Ryzen 5000 / 3000 / 2000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 2
Max Memory 64 GB
Max OC Speed DDR4-2400 to 2933 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2 (2x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 6E
Wireless Chip AMD RZ608 (MT7921K) (For PCB rev. 1.1)
Bluetooth 5.2
Display Outputs 1x DisplayPort, 2x HDMI
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 170 x 170 mm
Brand Gigabyte
Condition NEW
MFR Part X570SI AORUS PRO AX
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
