Gigabyte unit, triple-fan cooling, 3.5-slot, 335 mm long. Rated 355 W; Gigabyte recommends an 850 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

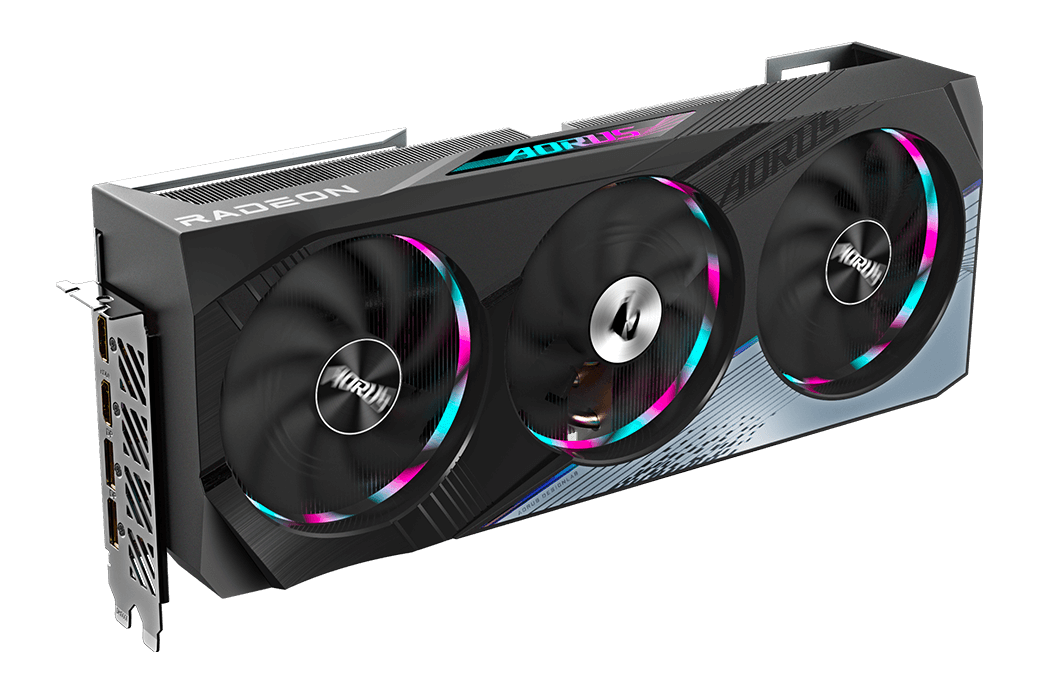

The Gigabyte RX 7900 XTX is a 24 GB GDDR6 graphics card built on AMD's RX 7900 XTX with 6,144 stream processors, a 2680 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 24 GB GDDR6 · 384-bit bus · 20 Gbps · 960 GB/s bandwidth
  • Cores 6,144 stream processors · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2680 MHz boost · 2510 MHz game
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1, 2x DisplayPort 2.1 · up to 4 displays at 7680×4320
  • Power 355 W board power · 3x 8-pin · 850 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2680 MHz
BOOST CLOCK
24 GB
VIDEO MEMORY
6144
STREAM PROCESSORS
355 W
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 6144
Boost Clock 2680 MHz
Game Clock 2510 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 24 GB
Memory Type GDDR6
Memory Bus 384-bit
Memory Bandwidth 960 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 355 W
Min PSU 850 W
Power Connectors 3x 8-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1, 2x DisplayPort 2.1
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 335 mm
Slot Width 3.5-slot
Form Factor Full-Height/Full-Length
Dimensions 335 x 137 x 69 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync FreeSync
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
