[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Gigabyte unit, triple-fan cooling, 2.5-slot, 276 mm long. Rated 315 W; Gigabyte recommends a 750 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

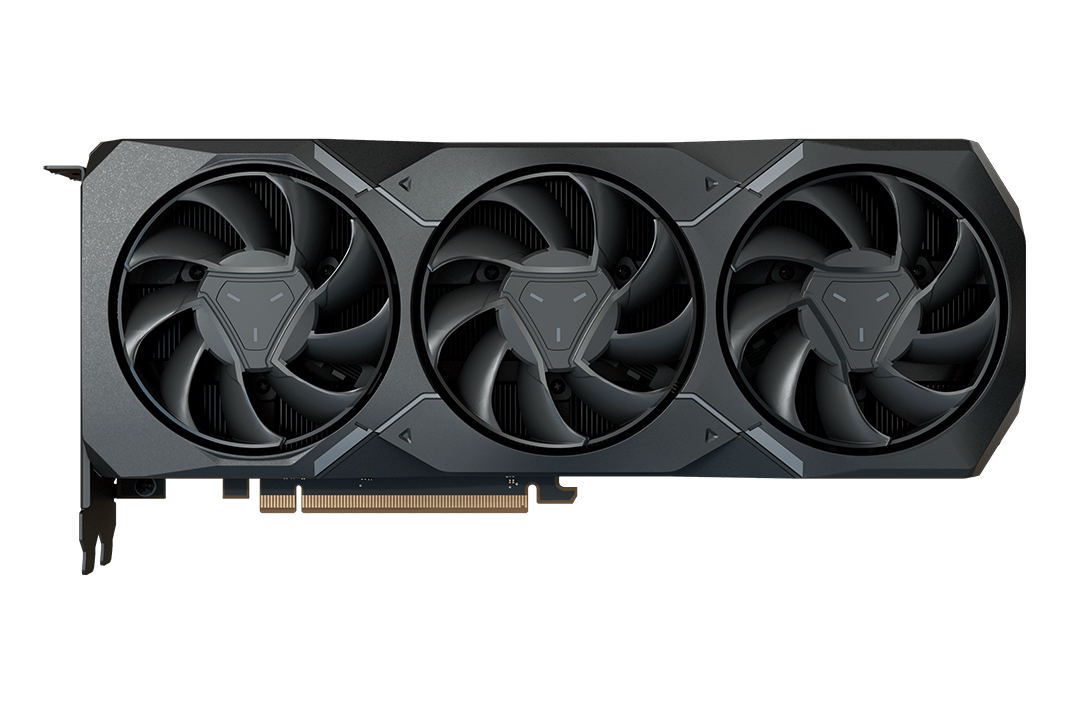

The Gigabyte RX 7900 XT is a 20 GB GDDR6 graphics card built on AMD's RX 7900 XT with 5,376 stream processors, a 2400 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 20 GB GDDR6 · 320-bit bus · 20 Gbps · 800 GB/s bandwidth
  • Cores 5,376 stream processors · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2400 MHz boost · 2000 MHz game
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1, 2x DisplayPort 2.1, 1x USB-C · up to 4 displays at 7680×4320
  • Power 315 W board power · 2x 8-pin · 750 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2400 MHz
BOOST CLOCK
20 GB
VIDEO MEMORY
5376
STREAM PROCESSORS
315 W
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 5376
Boost Clock 2400 MHz
Game Clock 2000 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 20 GB
Memory Type GDDR6
Memory Bus 320-bit
Memory Bandwidth 800 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 315 W
Min PSU 750 W
Power Connectors 2x 8-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 2x DisplayPort 2.1, 1x USB-C
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 276 mm
Slot Width 2.5-slot
Form Factor Full-Height/Full-Length
Dimensions 276 x 113 x 51 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync FreeSync
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
