Gigabyte unit, triple-fan cooling, 3-slot, 281 mm long. Gigabyte recommends a 600 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

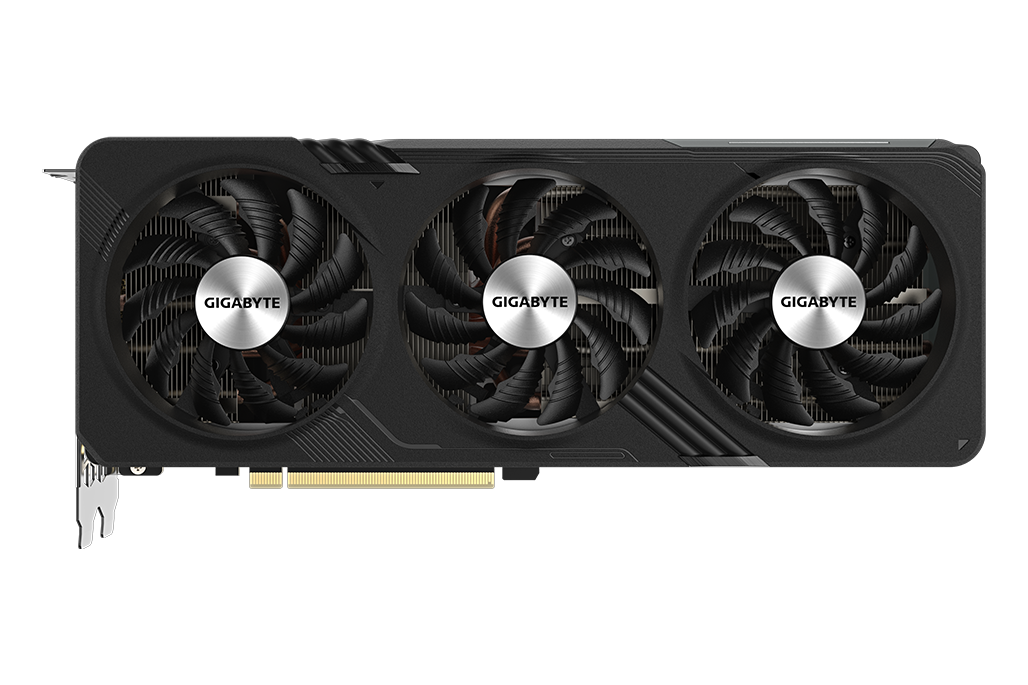

The Gigabyte GAMING RX 7600 XT OC is a 16 GB GDDR6 graphics card built on AMD's RX 7600 XT with 2,048 stream processors, a 2810 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 16 GB GDDR6 · 128-bit bus · 18 Gbps · 288 GB/s bandwidth
  • Cores 2,048 stream processors · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2810 MHz boost · 2539 MHz game
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1a, 2x DisplayPort 2.1 · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2810 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
2048
STREAM PROCESSORS
—
BOARD POWER
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 2048
Boost Clock 2810 MHz
Game Clock 2539 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 128-bit
Memory Bandwidth 288 GB/s
Memory Clock 18000 MHz (18 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 600 W
Power Connectors 2x 8-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1a, 2x DisplayPort 2.1
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 281 mm
Slot Width 3-slot
Form Factor Full-Height/Full-Length
Dimensions 281.4 x 116.6 x 52.6 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync FreeSync
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
