[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Gigabyte unit, triple-fan cooling, 3-slot, 300 mm long. Gigabyte recommends a 650 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

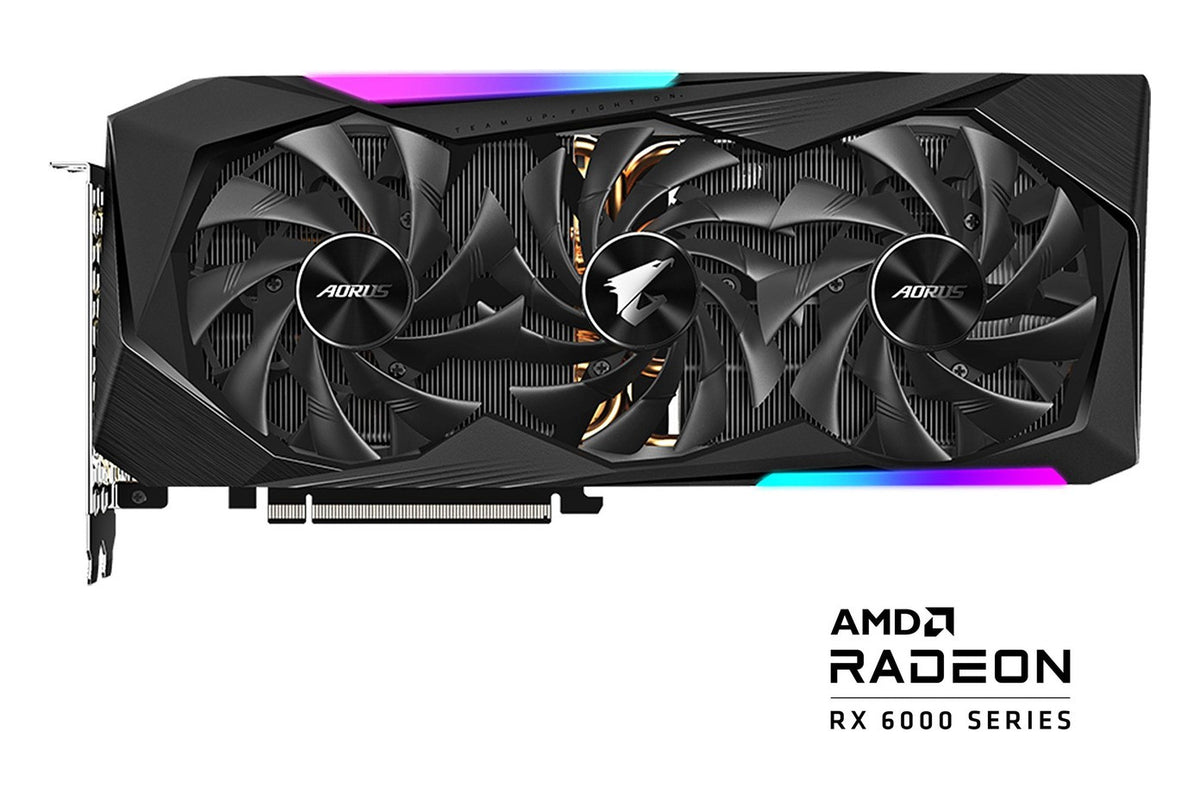

The Gigabyte MASTER RX 6800 is a 16 GB GDDR6 graphics card built on AMD's RX 6800 with 3,840 stream processors, a 2190 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 16 GB GDDR6 · 256-bit bus · 16 Gbps · 512 GB/s bandwidth
  • Cores 3,840 stream processors · DirectX 12.0 · OpenGL 4.6
  • Boost 2190 MHz boost · 1980 MHz game
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1, 2x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2190 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
3840
STREAM PROCESSORS
—
BOARD POWER
[ PARAMETER TABLE ] // 26 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 3840
Boost Clock 2190 MHz
Game Clock 1980 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 512 GB/s
Memory Clock 16000 MHz (16 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 650 W
Power Connectors 2x 8-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1, 2x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 300 mm
Slot Width 3-slot
Dimensions 300 x 130 x 60 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
FreeSync FreeSync
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
