Gigabyte unit, dual-fan cooling, 2-slot, 192 mm long. Gigabyte recommends a 400 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

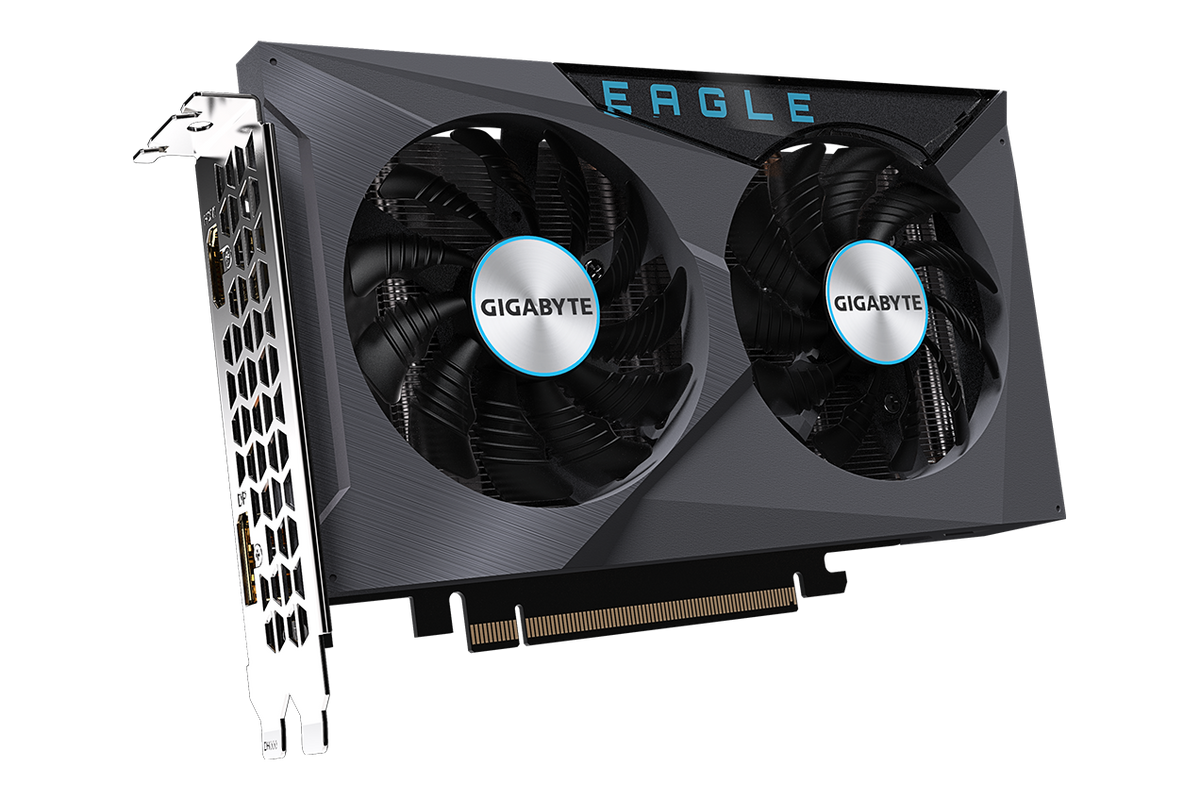

The Gigabyte EAGLE RX 6500 XT is a 4 GB GDDR6 graphics card built on AMD's RX 6500 XT with 1,024 stream processors, a 2815 MHz boost clock and 2 display outputs over PCIe 4.0.

  • Memory 4 GB GDDR6 · 64-bit bus · 18 Gbps · 144 GB/s bandwidth
  • Cores 1,024 stream processors · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2815 MHz boost · 2610 MHz game
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1, 1x DisplayPort 1.4a · up to 2 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2815 MHz
BOOST CLOCK
4 GB
VIDEO MEMORY
1024
STREAM PROCESSORS
—
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 1024
Boost Clock 2815 MHz
Game Clock 2610 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 4 GB
Memory Type GDDR6
Memory Bus 64-bit
Memory Bandwidth 144 GB/s
Memory Clock 18000 MHz (18 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 400 W
Power Connectors 1x 6-pin
Cooling Dual Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 1x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 2
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 192 mm
Slot Width 2-slot
Dimensions 192 x 117 x 38 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync FreeSync
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
