Gigabyte unit, 1.5-slot, 235 mm long. Gigabyte recommends an 850 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

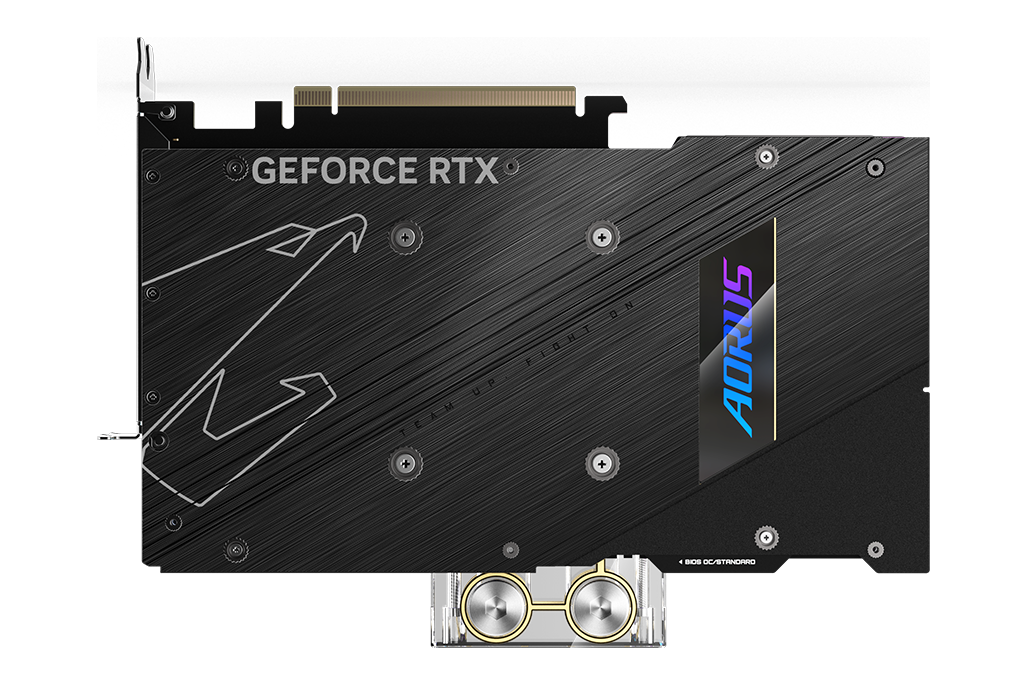

The Gigabyte AORUS RTX 4080 is a 16 GB GDDR6X graphics card built on NVIDIA's RTX 4080 with 9,728 CUDA cores, a 2565 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 16 GB GDDR6X · 256-bit bus · 22.4 Gbps · 716.8 GB/s bandwidth
  • Cores 9,728 CUDA cores · DirectX 12.0 · OpenGL 4.6
  • Boost 2565 MHz boost
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1a, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2565 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
9728
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 24 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 4000
CUDA Cores 9728
Boost Clock 2565 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6X
Memory Bus 256-bit
Memory Bandwidth 716.8 GB/s
Memory Clock 22400 MHz (22.4 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 850 W
Power Connectors 1x 16-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1a, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 235 mm
Slot Width 1.5-slot
Form Factor Full-Height/Full-Length
Dimensions 235 x 169 x 29 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
