Gigabyte unit, triple-fan cooling, 2.5-slot, 261 mm long. Gigabyte recommends a 650 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

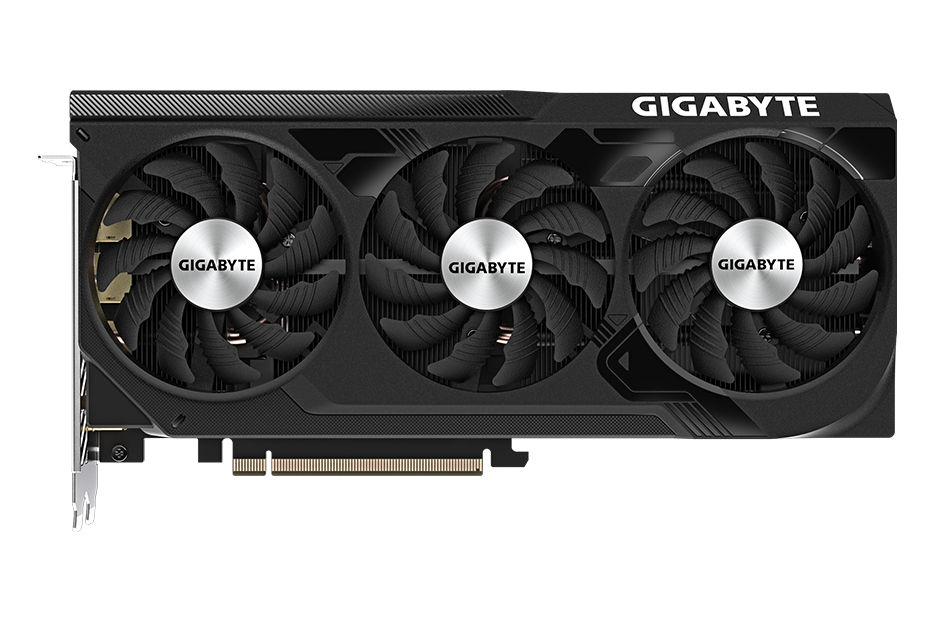

The Gigabyte WINDFORCE RTX 4070 is a 12 GB GDDR6X graphics card built on NVIDIA's RTX 4070 with 5,888 CUDA cores, a 2475 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 12 GB GDDR6X · 192-bit bus · 21 Gbps · 504 GB/s bandwidth
  • Cores 5,888 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2475 MHz boost
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1a, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2475 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
5888
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 4000
CUDA Cores 5888
Boost Clock 2475 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6X
Memory Bus 192-bit
Memory Bandwidth 504 GB/s
Memory Clock 21000 MHz (21 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 650 W
Power Connectors 1x 8-pin
Cooling Triple Fan
Lighting None
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1a, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 261 mm
Slot Width 2.5-slot
Dimensions 261 x 126 x 50 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
