Gigabyte unit, triple-fan cooling, 3-slot, 300 mm long. Rated 285 W; Gigabyte recommends a 750 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

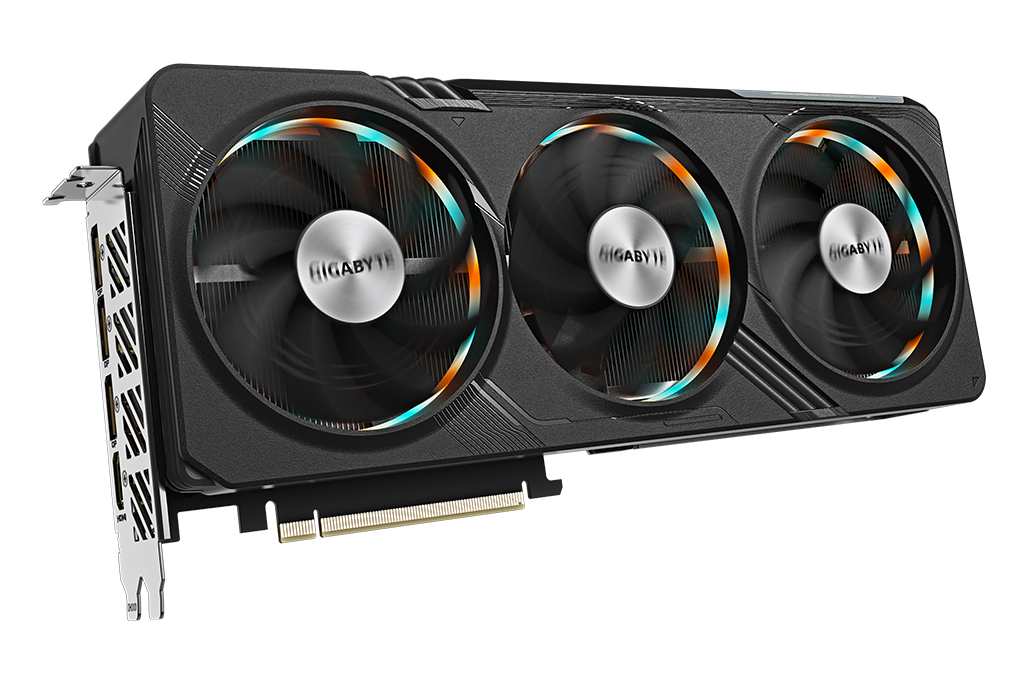

The Gigabyte GAMING RTX 4070 Ti SUPER OC is a 16 GB GDDR6X graphics card built on NVIDIA's RTX 4070 Ti SUPER with 8,448 CUDA cores, a 2655 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 16 GB GDDR6X · 256-bit bus · 21 Gbps · 672 GB/s bandwidth
  • Cores 8,448 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2655 MHz boost · 2340 MHz base
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1a, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320
  • Power 285 W board power · 1x 16-pin · 750 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2655 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
8448
CUDA CORES
285 W
BOARD POWER
[ PARAMETER TABLE ] // 26 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 4000
CUDA Cores 8448
Boost Clock 2655 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6X
Memory Bus 256-bit
Memory Bandwidth 672 GB/s
Memory Clock 21000 MHz (21 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 285 W
Min PSU 750 W
Power Connectors 1x 16-pin
Cooling Triple Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1a, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 300 mm
Slot Width 3-slot
Form Factor Full-Height/Full-Length
Dimensions 300 x 130 x 57.6 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
