Gigabyte unit, dual-fan cooling, 2-slot, 192 mm long. Gigabyte recommends a 450 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

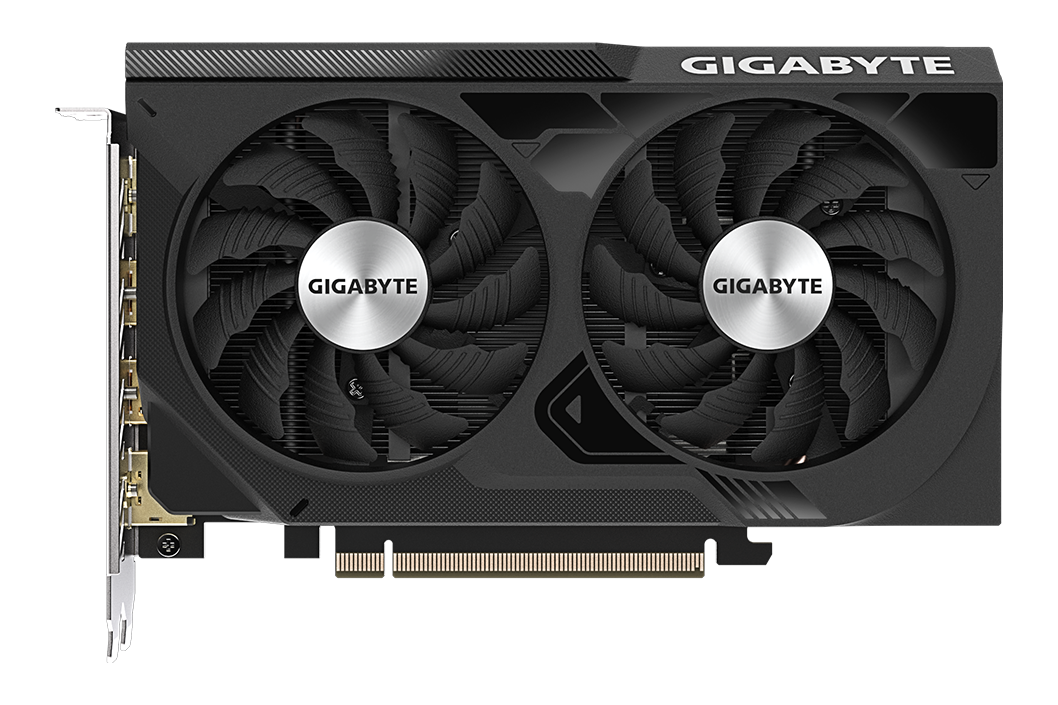

The Gigabyte WINDFORCE RTX 4060 is an 8 GB GDDR6 graphics card built on NVIDIA's RTX 4060 with 3,072 CUDA cores, a 2460 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 8 GB GDDR6 · 128-bit bus · 17 Gbps · 272 GB/s bandwidth
  • Cores 3,072 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2460 MHz boost
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1a, 2x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2460 MHz
BOOST CLOCK
8 GB
VIDEO MEMORY
3072
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 26 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 4000
CUDA Cores 3072
Boost Clock 2460 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 8 GB
Memory Type GDDR6
Memory Bus 128-bit
Memory Bandwidth 272 GB/s
Memory Clock 17000 MHz (17 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 450 W
Power Connectors 1x 8-pin
Cooling Dual Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1a, 2x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 192 mm
Slot Width 2-slot
Form Factor Full-Height/Half-Length
Dimensions 192 x 120 x 41 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
