Gigabyte unit, triple-fan cooling, 3.5-slot, 319 mm long. Gigabyte recommends an 850 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

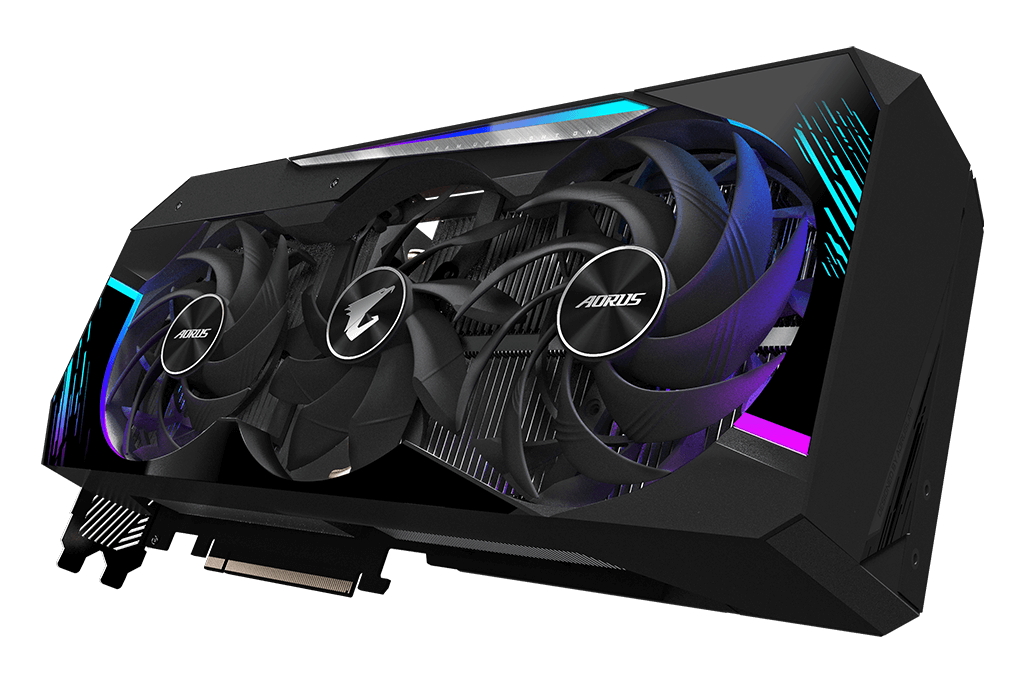

The Gigabyte MASTER RTX 3080 Ti is a 12 GB GDDR6X graphics card built on NVIDIA's RTX 3080 Ti with 10,240 CUDA cores, a 1770 MHz boost clock and 8 display outputs over PCIe 4.0.

  • Memory 12 GB GDDR6X · 384-bit bus · 19 Gbps · 912 GB/s bandwidth
  • Cores 10,240 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 1770 MHz boost
  • Interface PCIe 4.0 x16 · 5x HDMI 2.1, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
1770 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
10240
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 3000
CUDA Cores 10240
Boost Clock 1770 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6X
Memory Bus 384-bit
Memory Bandwidth 912 GB/s
Memory Clock 19000 MHz (19 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 850 W
Power Connectors 3x 8-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 5x HDMI 2.1, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 319 mm
Slot Width 3.5-slot
Form Factor Full-Height/Full-Length
Dimensions 319 x 140 x 70 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
