Gigabyte unit, dual-fan cooling, 2-slot, 198 mm long. Gigabyte recommends a 600 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

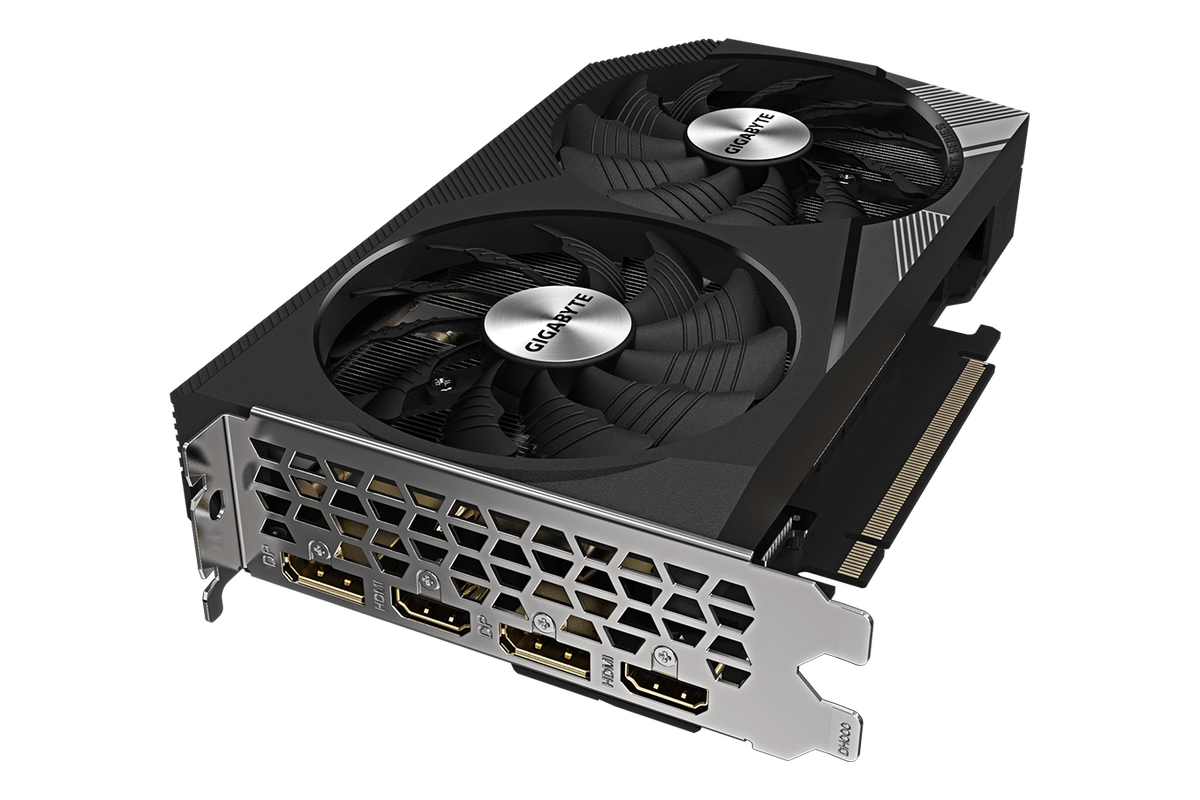

The Gigabyte WINDFORCE RTX 3060 Ti OC is an 8 GB GDDR6 graphics card built on NVIDIA's RTX 3060 Ti with 4,864 CUDA cores, a 1680 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 8 GB GDDR6 · 256-bit bus · 14 Gbps · 448 GB/s bandwidth
  • Cores 4,864 CUDA cores · DirectX 12.0 · OpenGL 4.6
  • Boost 1680 MHz boost
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1, 2x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
1680 MHz
BOOST CLOCK
8 GB
VIDEO MEMORY
4864
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 26 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 3000
CUDA Cores 4864
Boost Clock 1680 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 8 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 448 GB/s
Memory Clock 14000 MHz (14 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 600 W
Power Connectors 1x 8-pin
Cooling Dual Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1, 2x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 198 mm
Slot Width 2-slot
Dimensions 198 x 121 x 39 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
