Gigabyte board, 305 x 244 mm, 10 rear USB ports. Supports Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

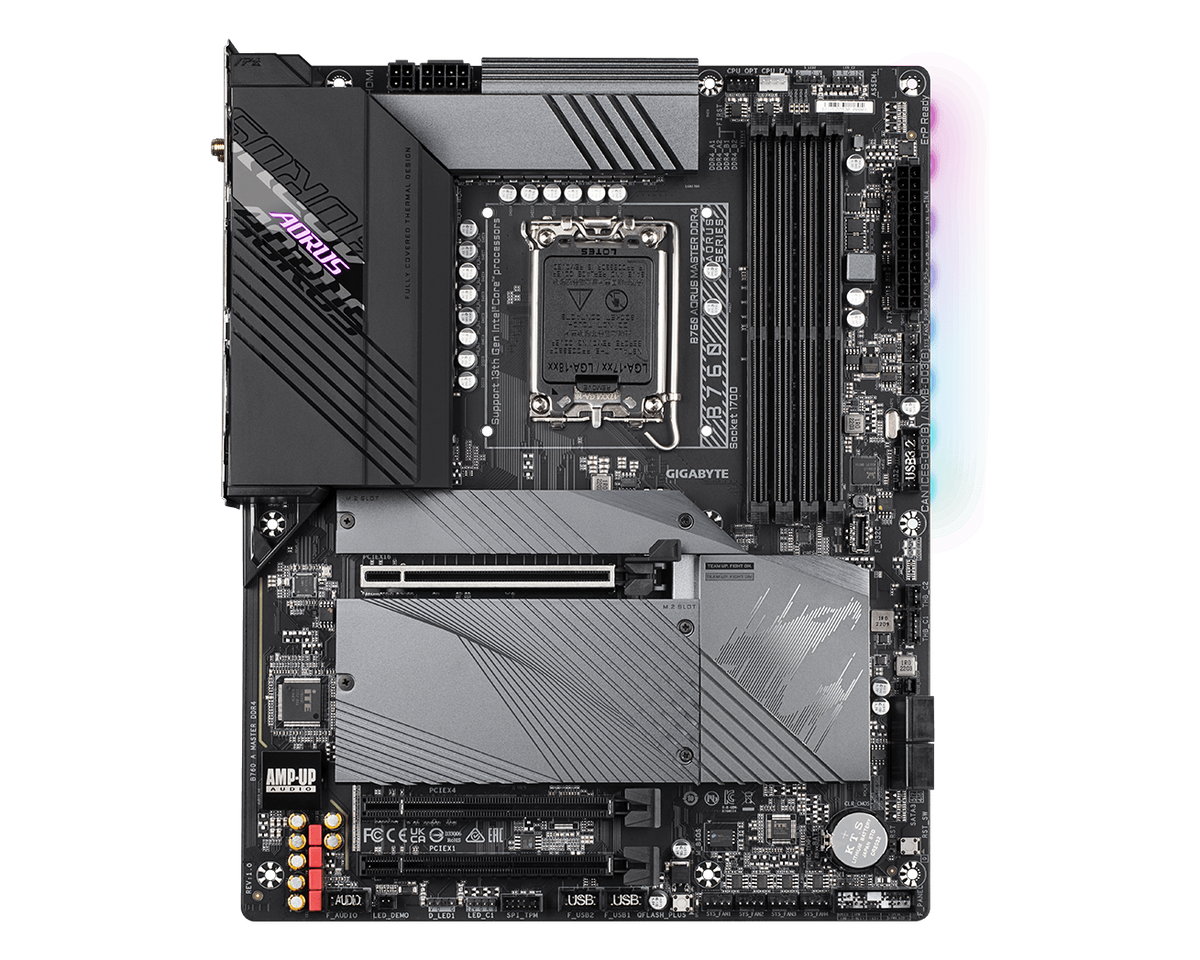

The Gigabyte B760 AORUS MASTER DDR4 is an LGA1700 ATX motherboard built on Intel's B760 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform LGA1700 · B760 chipset · Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4-2133 to 3200 MT/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC1220 audio
  • Rear I/O 10 USB (1x USB-C 20Gbps, 1x USB-A 10Gbps, 4x USB-A 5Gbps, 4x USB 2.0) · 1x DisplayPort, 1x HDMI

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B760
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B760
CPU Platform Intel
Form Factor ATX
CPU Support Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4-2133 to 3200 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 6E
Wireless Chip Intel AX211
Bluetooth 5.3
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part B760 AORUS MASTER DDR4
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
