Gigabyte board, 305 x 244 mm, 10 rear USB ports.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

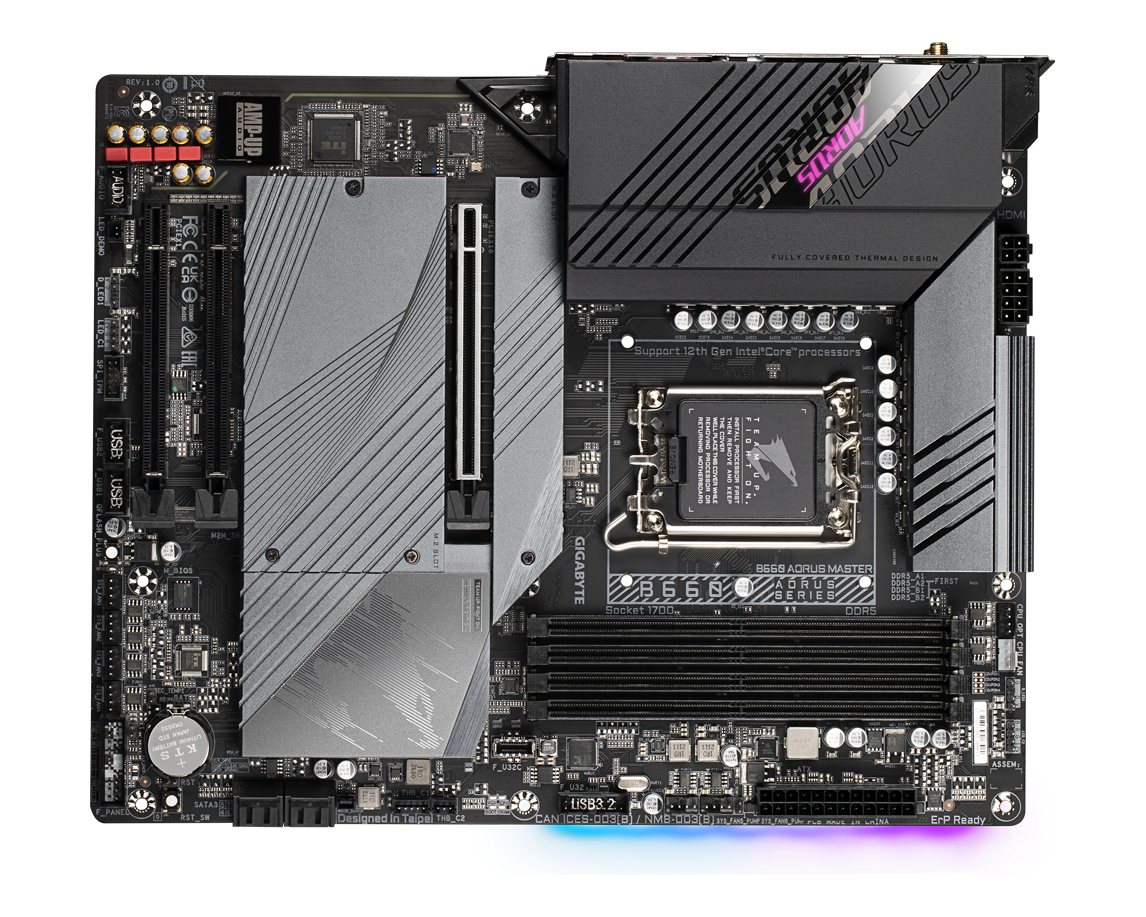

The Gigabyte B660 AORUS MASTER is an LGA1700 ATX motherboard built on Intel's B660 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots and 2.5GbE LAN.

  • Platform LGA1700 · B660 chipset
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4800 to 4800 MT/s
  • Expansion 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 · 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Bluetooth 5.2 · Realtek ALC1220 audio
  • Rear I/O 10 USB (1x USB-C 20Gbps, 1x USB-A 10Gbps, 4x USB-A 5Gbps, 4x USB 2.0) · 1x DisplayPort, 1x HDMI

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B660
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B660
CPU Platform Intel
Form Factor ATX
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4800 to 4800 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi None
Wireless Chip WIFI Module
Bluetooth 5.2
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Brand Gigabyte
Condition NEW
MFR Part B660 AORUS MASTER
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
