Gigabyte board, 244 x 244 mm, 9 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 5000 / 3000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

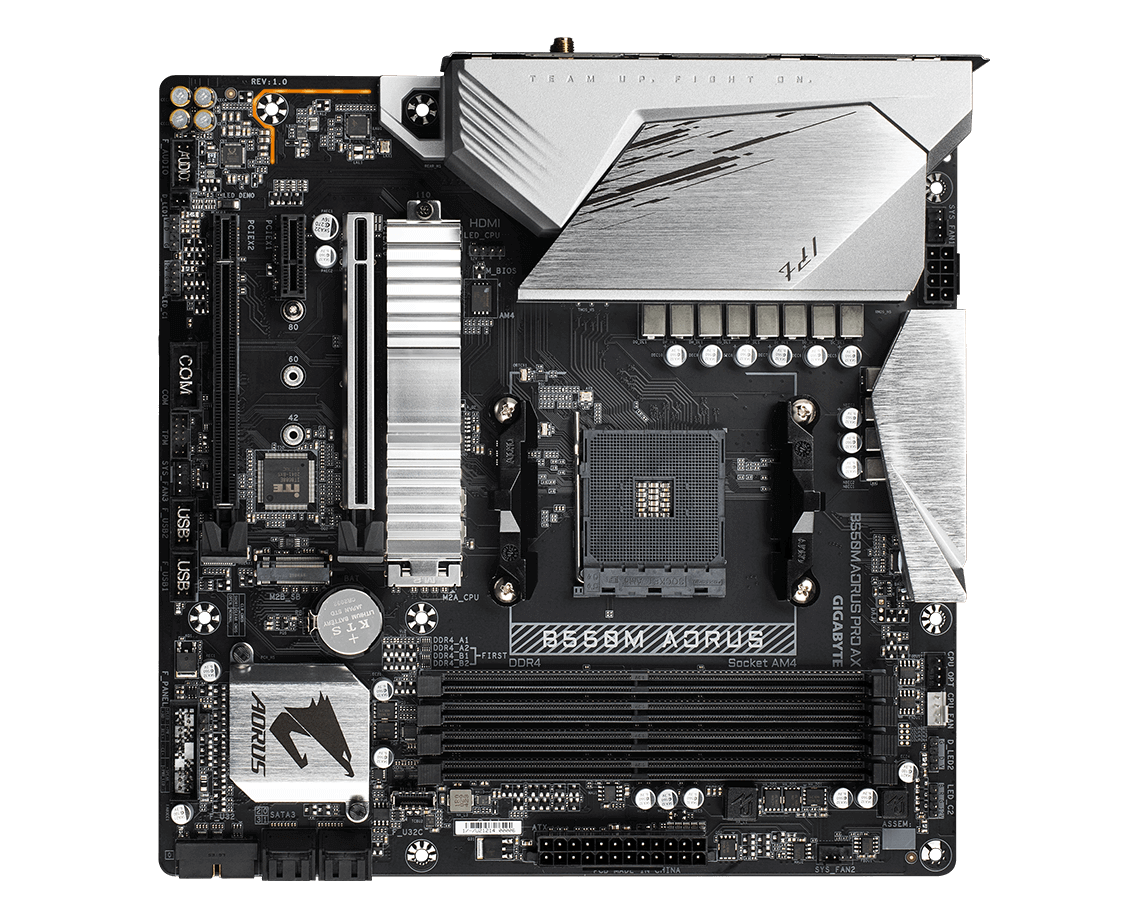

The Gigabyte B550M AORUS PRO AX is an AM4 mATX motherboard built on AMD's B550 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM4 · B550 chipset · AMD Ryzen 5000 / 3000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4-2400 to 3200 MT/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 6E · Bluetooth 5.2 · Realtek ALC1200 audio
  • Rear I/O 9 USB (4x USB 2.0, 3x USB-A 5Gbps, 1x USB-A 10Gbps, 1x USB-C 10Gbps) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 5000 / 3000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4-2400 to 3200 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 6E
Wireless Chip AMD RZ608 (MT7921K)
Bluetooth 5.2
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC1200
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part B550M AORUS PRO AX
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
