[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Gigabyte board, 233 x 198 mm, 6 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 5000 / 3000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

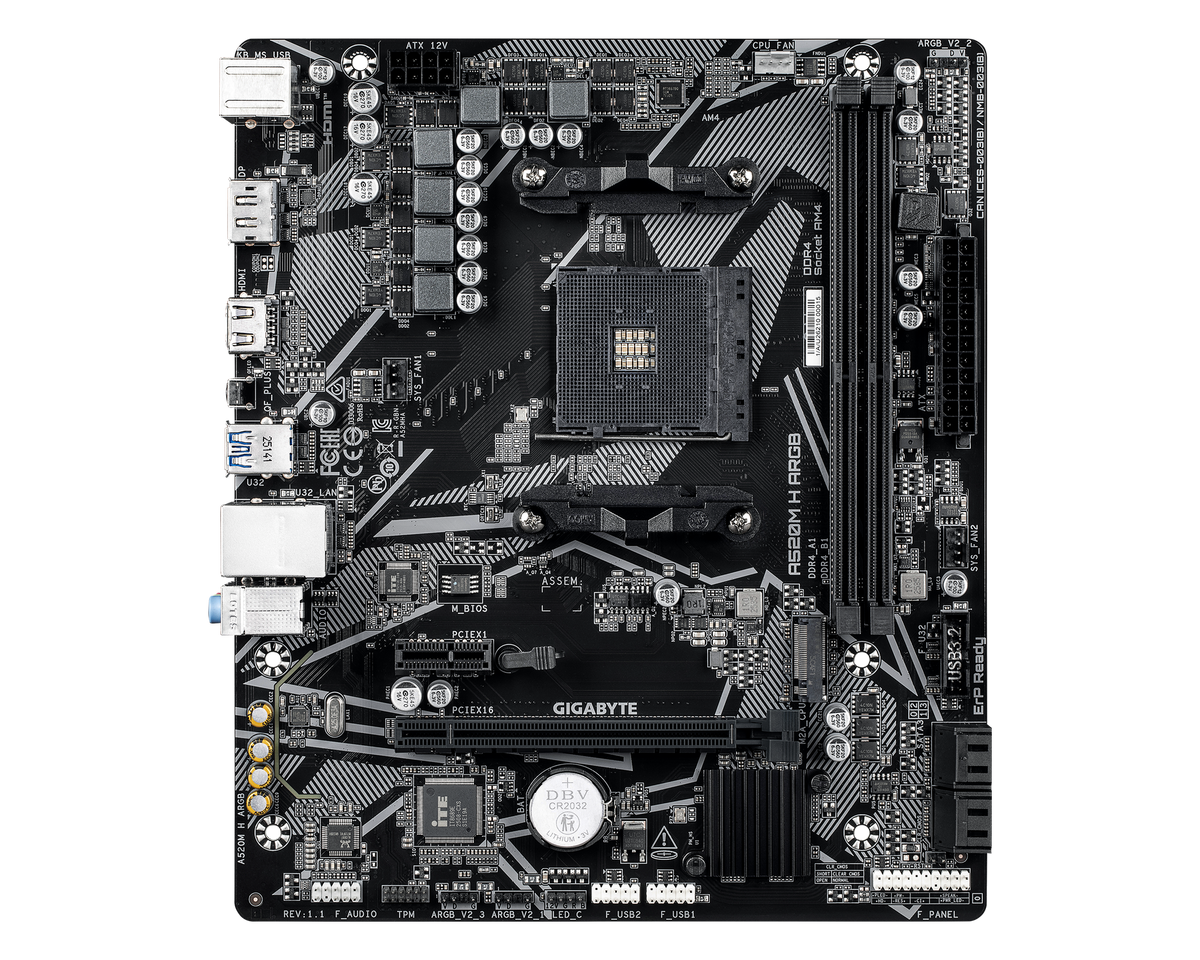

The Gigabyte A520M H ARGB is an AM4 mATX motherboard built on AMD's A520 chipset, with 2 DDR4 DIMM slots for up to 64 GB, 1 M.2 slots and 1GbE LAN.

  • Platform AM4 · A520 chipset · AMD Ryzen 5000 / 3000 Series
  • Memory 2x DDR4 DIMM · up to 64 GB · DDR4-2400 to 3200 MT/s
  • Expansion 1x PCIe 3.0 x16 · 1x M.2 (1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Realtek GbE)
  • Rear I/O 6 USB (2x USB 2.0, 4x USB-A 5Gbps) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
A520
CHIPSET
2 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 27 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset A520
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 5000 / 3000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 2
Max Memory 64 GB
Max OC Speed DDR4-2400 to 3200 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 3.0 x16
PCIe Gen 3.0
M.2 Slots 1x M.2 (1x PCIe 3.0)
M.2 Gen 3.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek GbE
Wi-Fi None
Display Outputs 1x DisplayPort, 1x HDMI
[ PHYSICAL ] SPEC·05
Dimensions 233 x 198 mm
Brand Gigabyte
Condition NEW
MFR Part A520M H ARGB
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
