Phanteks chassis, tempered glass side panel, 12 fan positions, 99 L.

MFR WARRANTY
5 Years
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

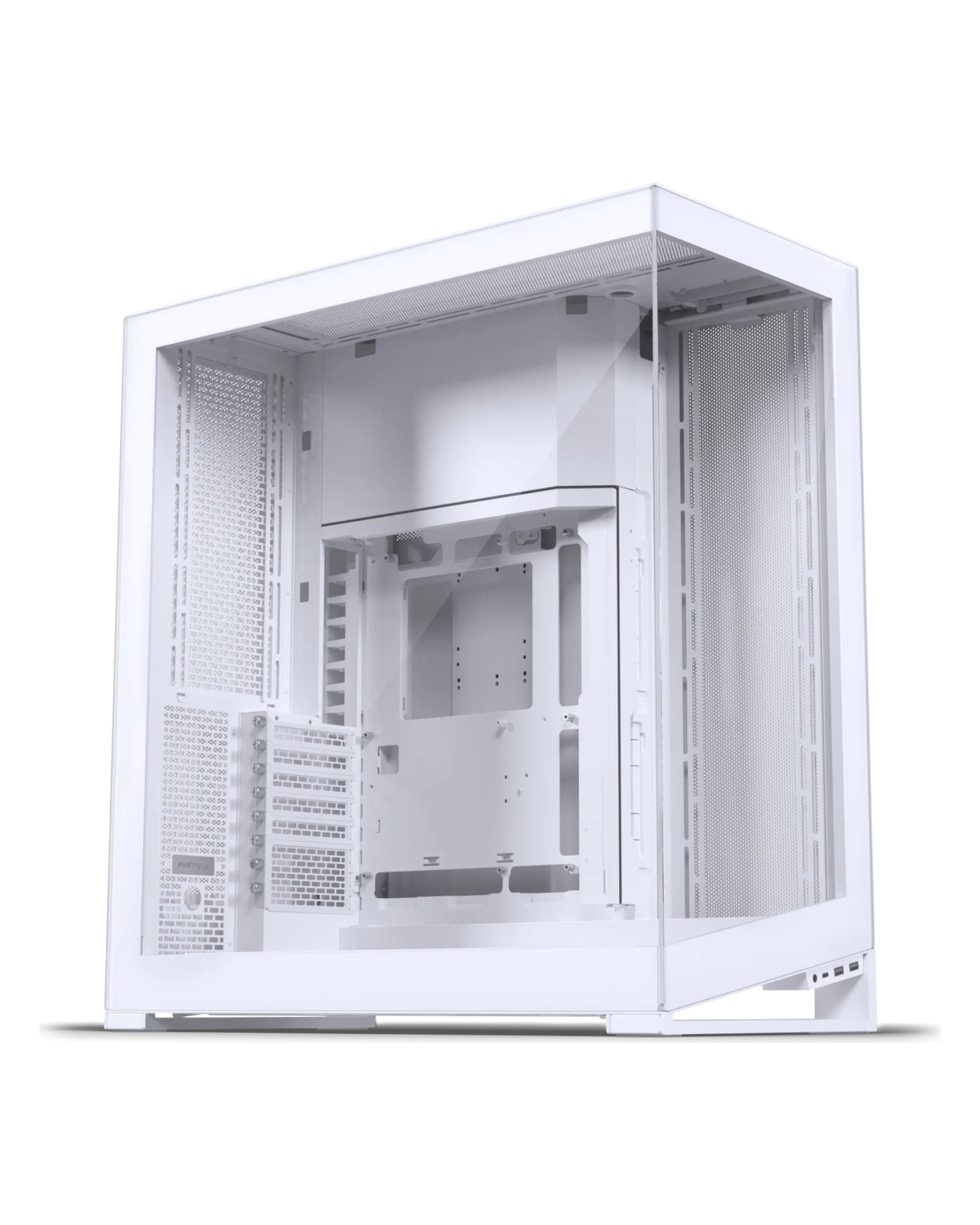

The Phanteks NV9 MKII is a full-tower PC case for E-ATX / ATX / Micro-ATX / Mini-ITX motherboards, with room for graphics cards up to 490mm, CPU coolers up to 205mm tall and radiators up to 480mm.

  • Board fit E-ATX / ATX / Micro-ATX / Mini-ITX
  • Clearance GPU 490mm · CPU cooler 205mm · PSU 210mm
  • Cooling Radiators 240 / 280 / 360 / 420 / 480mm · 12 fan positions
  • Front I/O 2x USB 3.0, 2x 1x USB-C 3.2 Gen2, 1x Microphone | Headphone combo, D-RGB speed
  • Storage 3.5″: 3 + 2x 2.5″ SSD *Max 24mm HDD height when SSDs installed, 2.5″: 6 + 0x 3.5″ HDD
  • Physical Full Tower · tempered glass side panel · 575 x 280 x 615 mm · 99 L

Backed by NIMBUS Cybertech's 1 Year coverage, on top of the 5 Years manufacturer warranty from Phanteks.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
490 mm
MAX GPU LENGTH
205 mm
MAX COOLER HT
99 L
VOLUME
—
FANS INCLUDED
[ PARAMETER TABLE ] // 22 PARAMETERS
[ FORM & SUPPORT ] SPEC·01
Case Size Full Tower
Board Fit E-ATX, ATX, Micro-ATX, Mini-ITX
Max GPU Length 490 mm
Max PSU Length 210 mm
PSU Form ATX
[ COOLING SUPPORT ] SPEC·02
Max Cooler Ht 205 mm
Radiators 240, 280, 360, 420, 480 mm
Fan Mounts 12
[ STORAGE & I/O ] SPEC·03
Drive Bays 3.5″: 3 + 2x 2.5″ SSD *Max 24mm HDD height when SSDs installed, 2.5″: 6 + 0x 3.5″ HDD
Front USB-C Yes
Front I/O 2x USB 3.0, 2x 1x USB-C 3.2 Gen2, 1x Microphone | Headphone combo, D-RGB speed
[ PHYSICAL ] SPEC·04
Side Panel Tempered Glass
Volume 99 L
Dimensions 575 x 280 x 615 mm
Weight 19.52 kg
Color White
Brand Phanteks
Generation Current
Condition NEW
MFR Part PH-NV923TG_DMW02
[ SUPPORT ] SPEC·05
Manufacturer 5 Years
NIMBUS 1 Year →
