Phanteks chassis, tempered glass side panel, 7 fan positions, 92 L.

MFR WARRANTY
5 Years
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

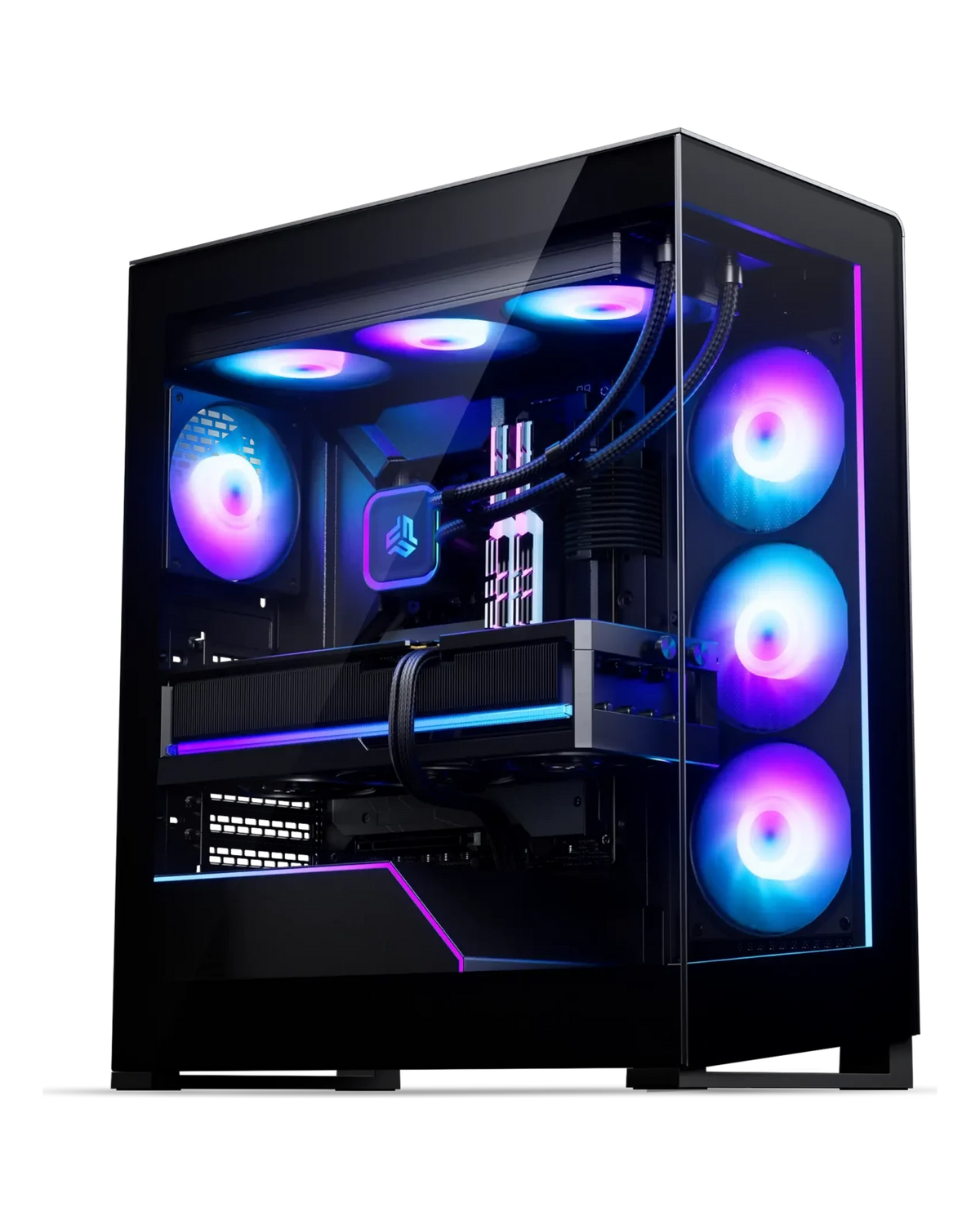

The Phanteks NV5X is a mid-tower PC case for E-ATX / ATX / Micro-ATX / Mini-ITX motherboards, with room for graphics cards up to 430mm, CPU coolers up to 170mm tall and radiators up to 360mm.

  • Board fit E-ATX / ATX / Micro-ATX / Mini-ITX
  • Clearance GPU 430mm · CPU cooler 170mm · PSU 195mm
  • Cooling Radiators 120 / 360mm · 7 fan positions
  • Front I/O 2x USB 3.0, 2x 1x USB-C 3.2 Gen2, 1x Microphone | Headphone combo
  • Storage 3.5″: 1 + 3x 2.5″ SSD, 2.5″: 3 + 1x 3.5″ HDD
  • Physical Mid Tower · tempered glass side panel · 594 x 293 x 526 mm · 92 L

Backed by NIMBUS Cybertech's 1 Year coverage, on top of the 5 Years manufacturer warranty from Phanteks.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
430 mm
MAX GPU LENGTH
170 mm
MAX COOLER HT
92 L
VOLUME
—
FANS INCLUDED
[ PARAMETER TABLE ] // 22 PARAMETERS
[ FORM & SUPPORT ] SPEC·01
Case Size Mid Tower
Board Fit E-ATX, ATX, Micro-ATX, Mini-ITX
Max GPU Length 430 mm
Max PSU Length 195 mm
PSU Form ATX
[ COOLING SUPPORT ] SPEC·02
Max Cooler Ht 170 mm
Radiators 120, 360 mm
Fan Mounts 7
[ STORAGE & I/O ] SPEC·03
Drive Bays 3.5″: 1 + 3x 2.5″ SSD, 2.5″: 3 + 1x 3.5″ HDD
Front USB-C Yes
Front I/O 2x USB 3.0, 2x 1x USB-C 3.2 Gen2, 1x Microphone | Headphone combo
[ PHYSICAL ] SPEC·04
Side Panel Tempered Glass
Volume 92 L
Dimensions 594 x 293 x 526 mm
Weight 8.3 kg
Color Black
Brand Phanteks
Generation Current
Condition NEW
MFR Part PH-NV523X_DBK01
[ SUPPORT ] SPEC·05
Manufacturer 5 Years
NIMBUS 1 Year →
