[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Phanteks chassis, tempered glass side panel, 8 fan positions, 60 L.

MFR WARRANTY
5 Years
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

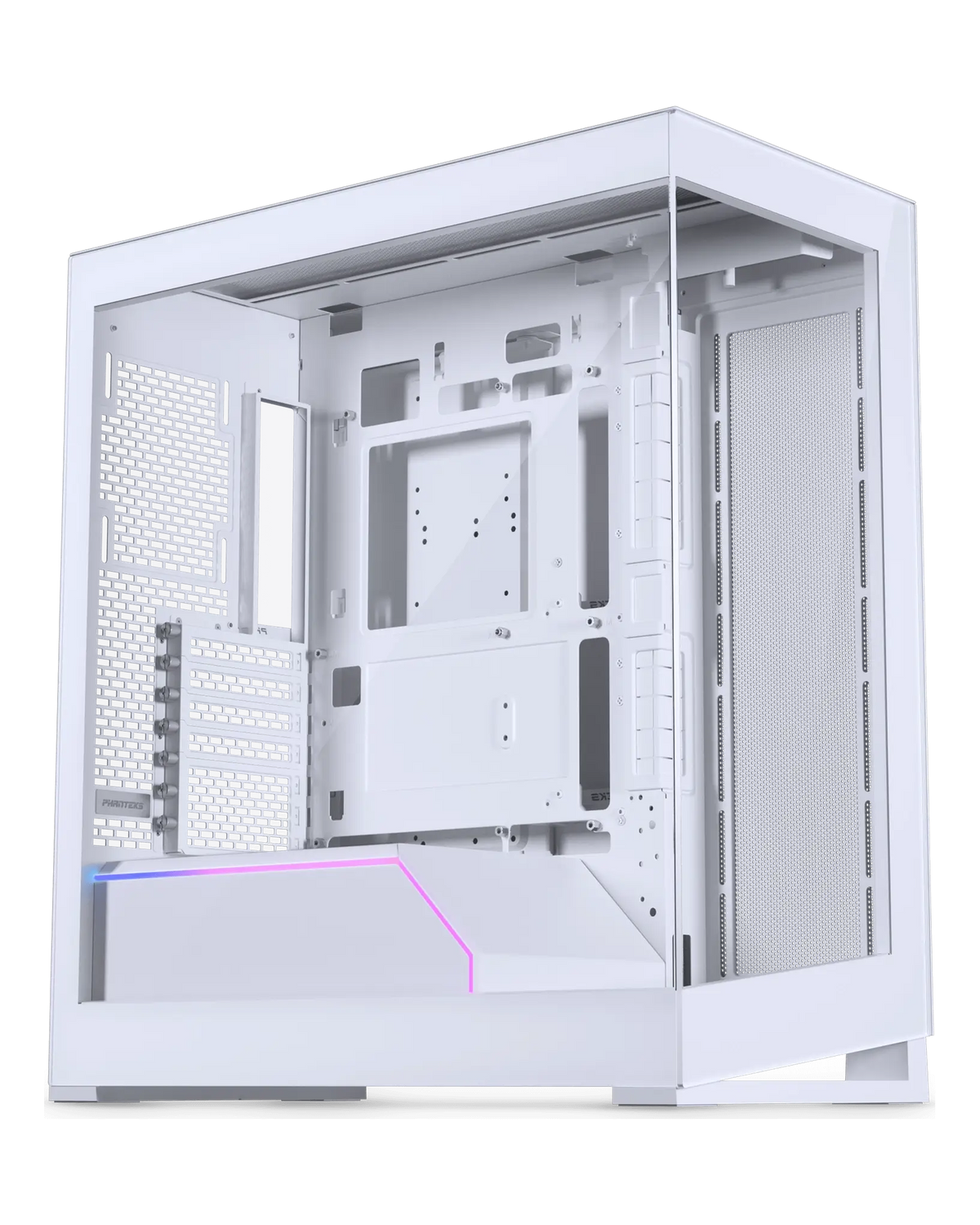

The Phanteks NV5 MKII is a mid-tower PC case for E-ATX / ATX / Micro-ATX / Mini-ITX motherboards, with room for graphics cards up to 440mm, CPU coolers up to 180mm tall and radiators up to 360mm.

  • Board fit E-ATX / ATX / Micro-ATX / Mini-ITX
  • Clearance GPU 440mm · CPU cooler 180mm · PSU 230mm
  • Cooling Radiators 120 / 360mm · 8 fan positions
  • Front I/O 1x USB-C 3.2 Gen 2, 2x USB 3.0, Microphone | Headphone
  • Storage 3.5″: 3, 2.5″: 4
  • Physical Mid Tower · tempered glass side panel · 239 x 477 x 528 mm · 60 L

Backed by NIMBUS Cybertech's 1 Year coverage, on top of the 5 Years manufacturer warranty from Phanteks.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
440 mm
MAX GPU LENGTH
180 mm
MAX COOLER HT
60 L
VOLUME
—
FANS INCLUDED
[ PARAMETER TABLE ] // 22 PARAMETERS
[ FORM & SUPPORT ] SPEC·01
Case Size Mid Tower
Board Fit E-ATX, ATX, Micro-ATX, Mini-ITX
Max GPU Length 440 mm
Max PSU Length 230 mm
PSU Form ATX
[ COOLING SUPPORT ] SPEC·02
Max Cooler Ht 180 mm
Radiators 120, 360 mm
Fan Mounts 8
[ STORAGE & I/O ] SPEC·03
Drive Bays 3.5″: 3, 2.5″: 4
Front USB-C Yes
Front I/O 1x USB-C 3.2 Gen 2, 2x USB 3.0, Microphone | Headphone
[ PHYSICAL ] SPEC·04
Side Panel Tempered Glass
Volume 60 L
Dimensions 239 x 477 x 528 mm
Weight 11.28 kg
Color White
Brand Phanteks
Generation Current
Condition NEW
MFR Part PH-NV523TG_DMW02
[ SUPPORT ] SPEC·05
Manufacturer 5 Years
NIMBUS 1 Year →
