Phanteks chassis, tempered glass side panel, 7 fan positions, 62 L.

MFR WARRANTY
5 Years
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

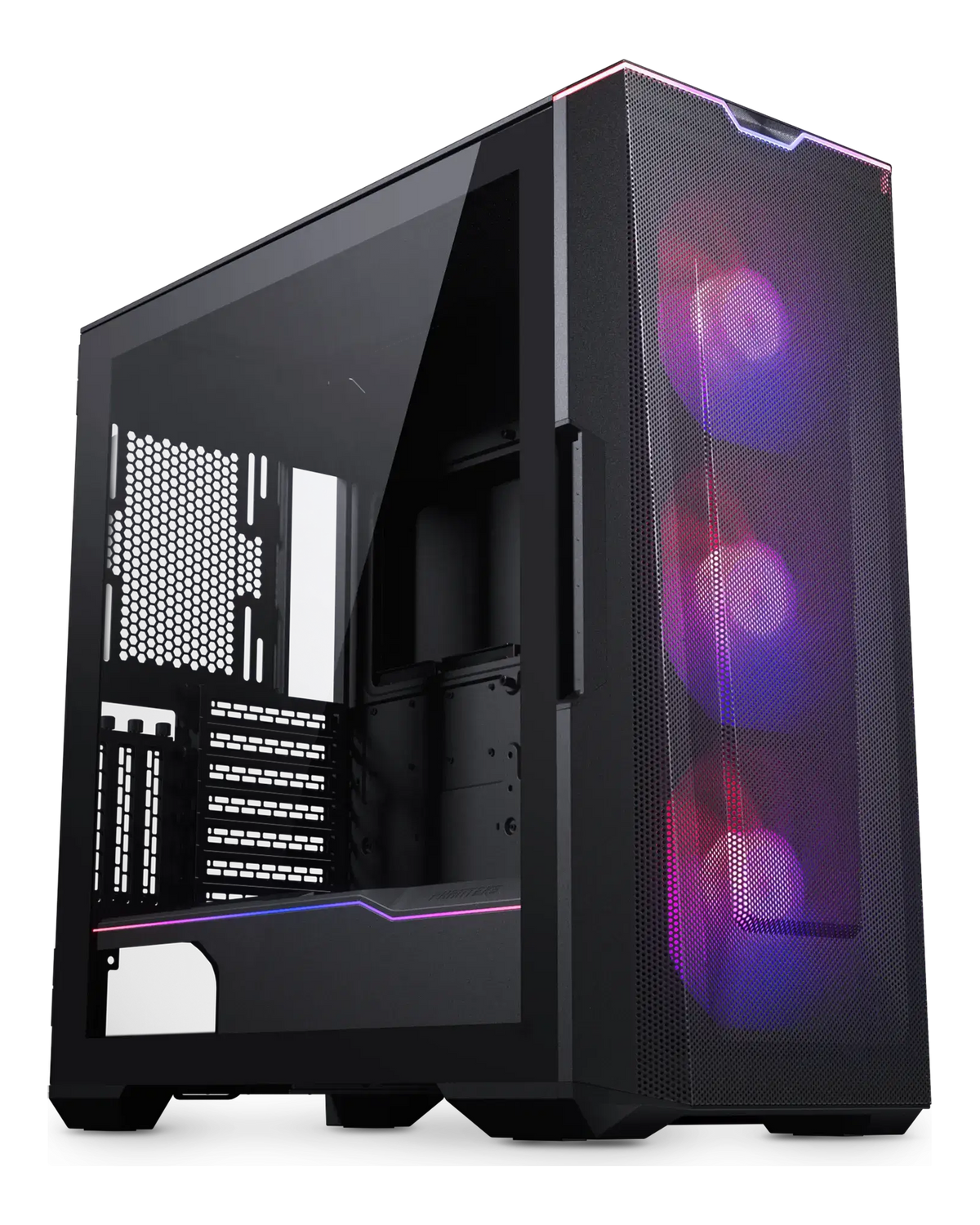

The Phanteks Eclipse G500A D-RGB is a mid-tower PC case for E-ATX / ATX / Micro-ATX / Mini-ITX motherboards, with room for graphics cards up to 435mm, CPU coolers up to 185mm tall and radiators up to 420mm.

  • Board fit E-ATX / ATX / Micro-ATX / Mini-ITX
  • Clearance GPU 435mm · CPU cooler 185mm · PSU 195mm
  • Cooling Radiators 120 / 280 / 360 / 420mm · 7 fan positions
  • Front I/O 1x USB-C 3.2 Gen 2, 2x USB 3.0, Microphone | Headphone
  • Storage 3.5″: 10 | 2 Included + 9x 2.5″ SSD, 2.5″: 9 + 10x 3.5″ HDD
  • Physical Mid Tower · tempered glass side panel · 240 x 500 x 515 mm · 62 L

Backed by NIMBUS Cybertech's 1 Year coverage, on top of the 5 Years manufacturer warranty from Phanteks.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
435 mm
MAX GPU LENGTH
185 mm
MAX COOLER HT
62 L
VOLUME
3
FANS INCLUDED
[ PARAMETER TABLE ] // 23 PARAMETERS
[ FORM & SUPPORT ] SPEC·01
Case Size Mid Tower
Board Fit E-ATX, ATX, Micro-ATX, Mini-ITX
Max GPU Length 435 mm
Max PSU Length 195 mm
PSU Form ATX
[ COOLING SUPPORT ] SPEC·02
Max Cooler Ht 185 mm
Radiators 120, 280, 360, 420 mm
Fans Included 3
Fan Mounts 7
[ STORAGE & I/O ] SPEC·03
Drive Bays 3.5″: 10 | 2 Included + 9x 2.5″ SSD, 2.5″: 9 + 10x 3.5″ HDD
Front USB-C Yes
Front I/O 1x USB-C 3.2 Gen 2, 2x USB 3.0, Microphone | Headphone
[ PHYSICAL ] SPEC·04
Side Panel Tempered Glass
Volume 62 L
Dimensions 240 x 500 x 515 mm
Weight 10.53 kg
Color Black
Brand Phanteks
Generation Current
Condition NEW
MFR Part PH-EC500GA_DBK01A
[ SUPPORT ] SPEC·05
Manufacturer 5 Years
NIMBUS 1 Year →
