[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B850
CHIPSET
128GB
MAX MEMORY
2.5 Gbps
LAN SPEED
[ PARAMETER TABLE ] // 22 PARAMETERS
[ CORE PLATFORM ] SPEC·01

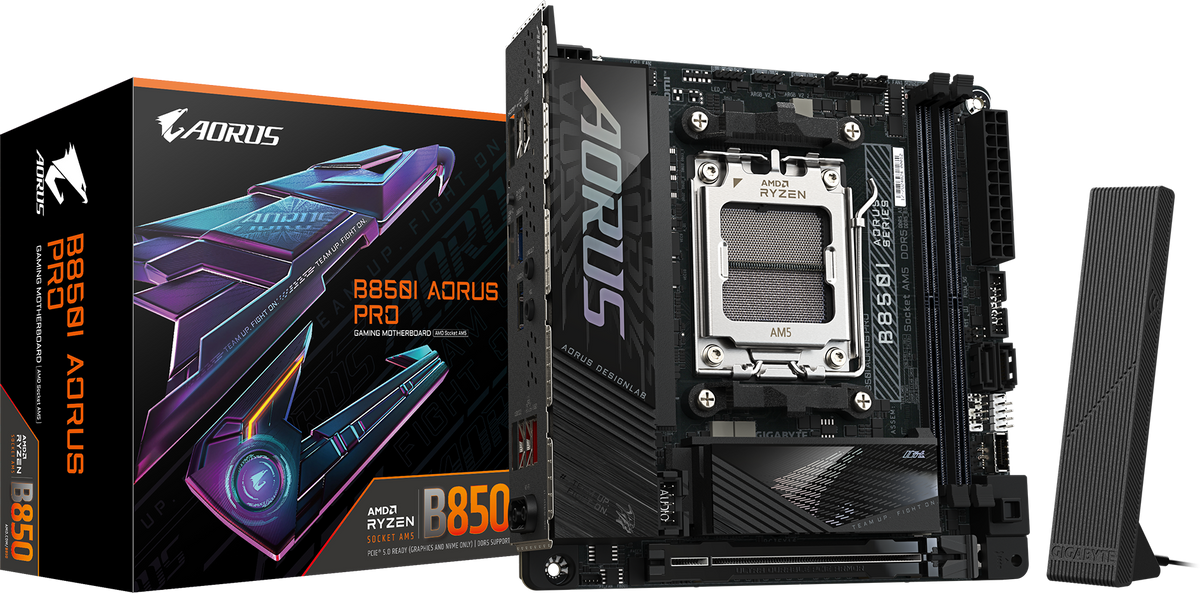

CPU Platform AMD
Socket AM5
Chipset B850
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
[ MEMORY ] SPEC·02
Memory Type DDR5
Memory Slots 2
Max Memory 128GB
Memory Speed DDR5-4400 to 8400 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION & STORAGE ] SPEC·03
PCIe Slots 1x PCIe 5.0 x16
M.2 Slots 2x M.2 (1x PCIe 5.0 x4 CPU, 1x PCIe 4.0 x4 chipset)
SATA Ports 2x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04

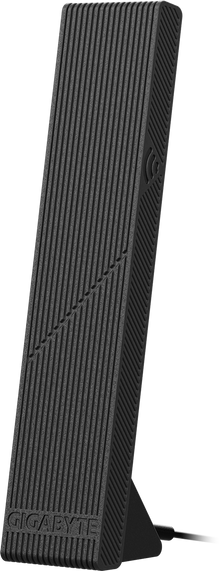

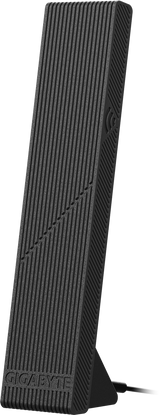

Wi-Fi Wi-Fi 7
Wireless Chip Realtek RTL8922AE
Bluetooth 5.4
LAN Speed 2.5 Gbps
LAN Chip Realtek 2.5GbE
[ I/O & AUDIO ] SPEC·05
Rear I/O 1x USB-C 10Gbps, 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 2x USB 2.0, 1x HDMI, 1x RJ-45, 2x Wi-Fi antenna, 2x audio jacks, Q-Flash Plus button
Display Outputs 1x HDMI
Audio Realtek ALC4080
[ FORM FACTOR ] SPEC·06
Form Factor Mini-ITX
Dimensions 170 x 170 mm
