ASUS board, 305 x 244 mm, 8 rear USB ports. Supports Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

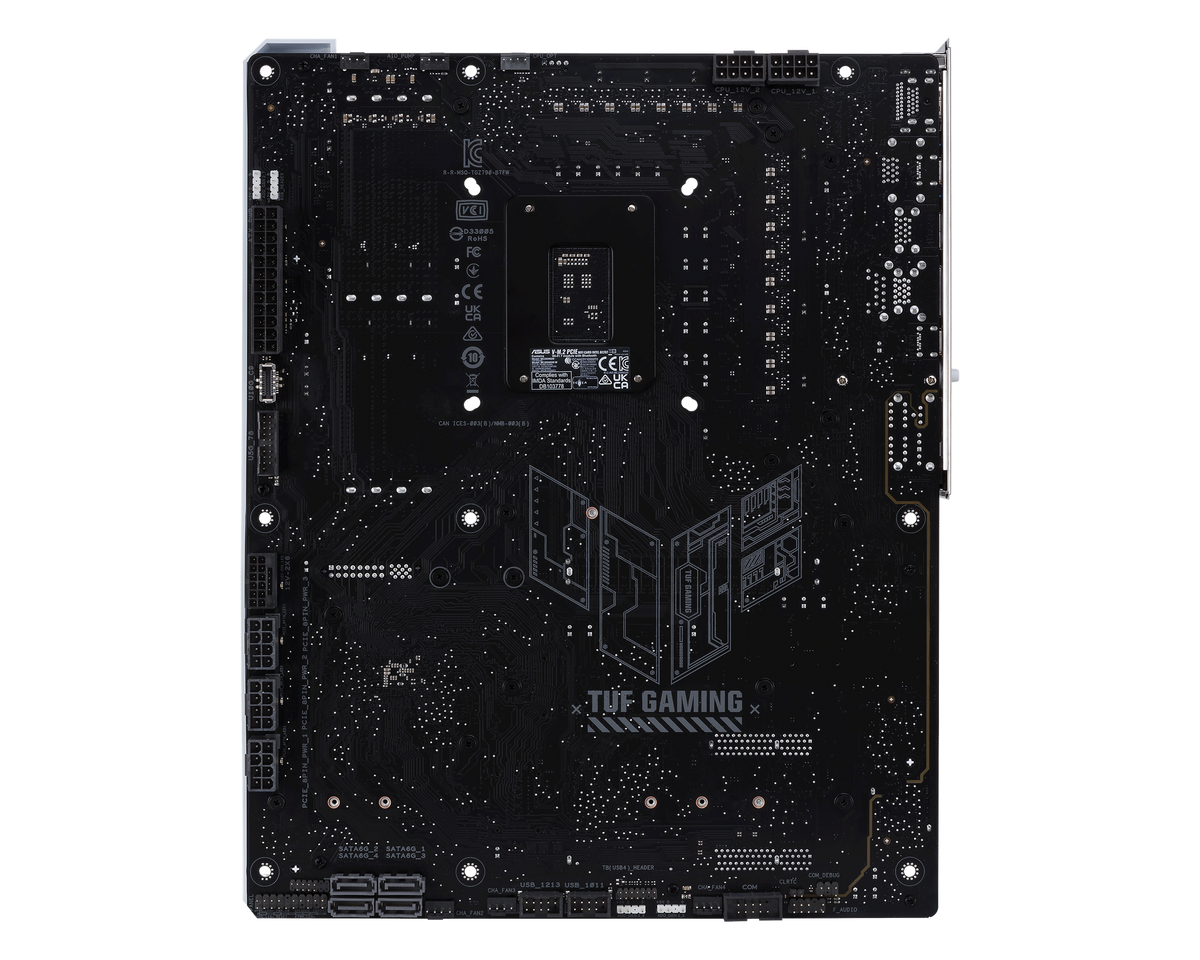

The ASUS TUF GAMING Z790-BTF WIFI is an LGA1700 ATX motherboard built on Intel's Z790 chipset, with 4 DDR5 DIMM slots for up to 192 GB, 4 M.2 slots, 2.5GbE LAN and Wi-Fi 7.

  • Platform LGA1700 · Z790 chipset · Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Memory 4x DDR5 DIMM · up to 192 GB · DDR5-4800 to 7200 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 4x M.2 (4x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC1220P audio
  • Rear I/O 8 USB (1x USB 20Gbps, 3x USB 10Gbps, 4x USB 5Gbps) · 1x DisplayPort, 1x HDMI

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z790
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z790
CPU Platform Intel
Form Factor ATX
CPU Support Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 192 GB
Max OC Speed DDR5-4800 to 7200 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 4x M.2 (4x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 7
Bluetooth 5.4
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC1220P
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part TUF GAMING Z790-BTF WIFI
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
