ASUS board, 305 x 244 mm, 7 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 5000 / 3000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

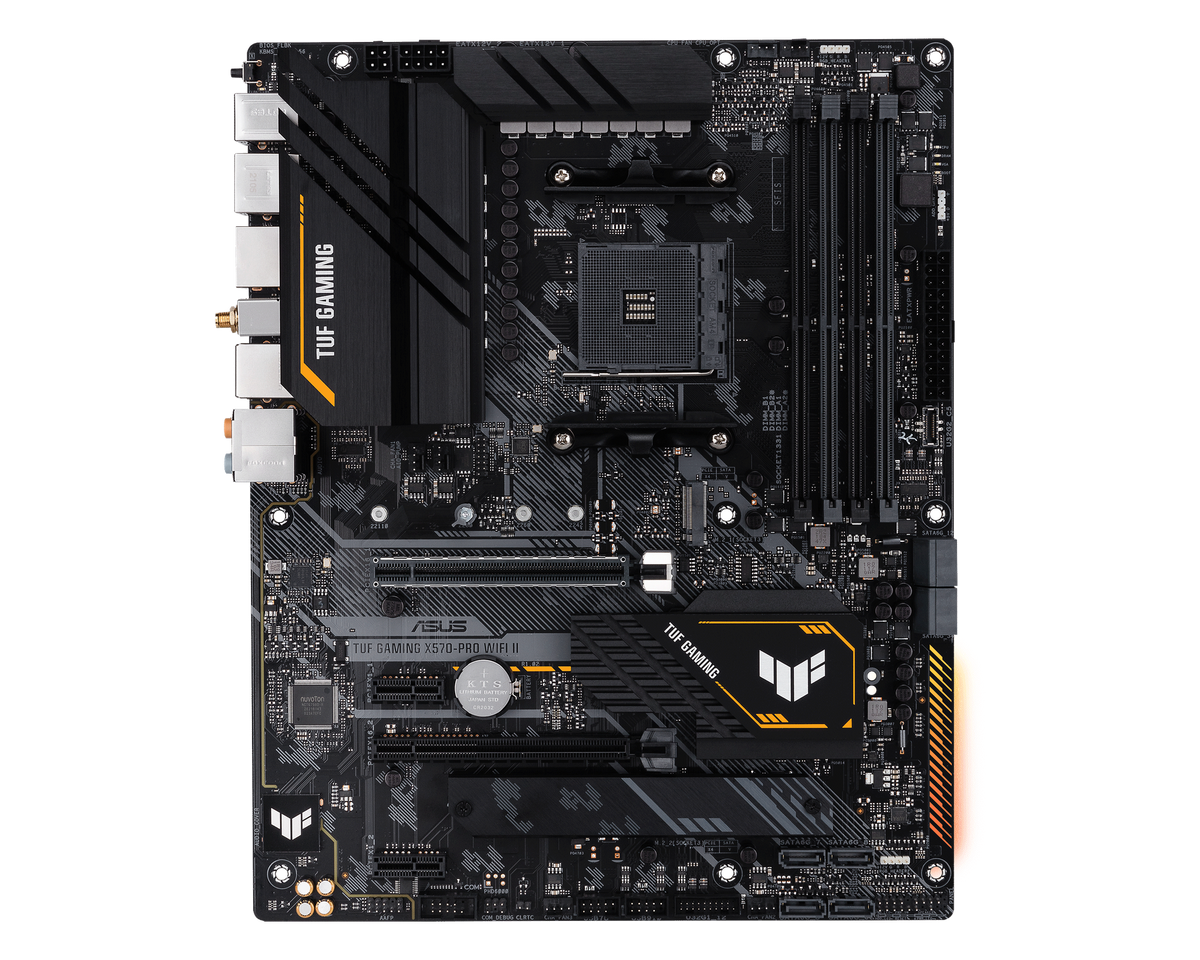

The ASUS TUF GAMING X570-PRO WIFI II is an AM4 ATX motherboard built on AMD's X570 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM4 · X570 chipset · AMD Ryzen 5000 / 3000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4 up to 2133 MT/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 6E · Bluetooth 5.2 · Realtek ALC887 audio
  • Rear I/O 7 USB (3x USB 10Gbps, 4x USB 5Gbps) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
X570
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 27 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset X570
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 5000 / 3000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4 up to 2133 MT/s
[ EXPANSION ] SPEC·03
M.2 Slots 2x M.2 (2x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 8x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.2
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC887
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part TUF GAMING X570-PRO WIFI II
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
