ASUS board, 305 x 244 mm, 8 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

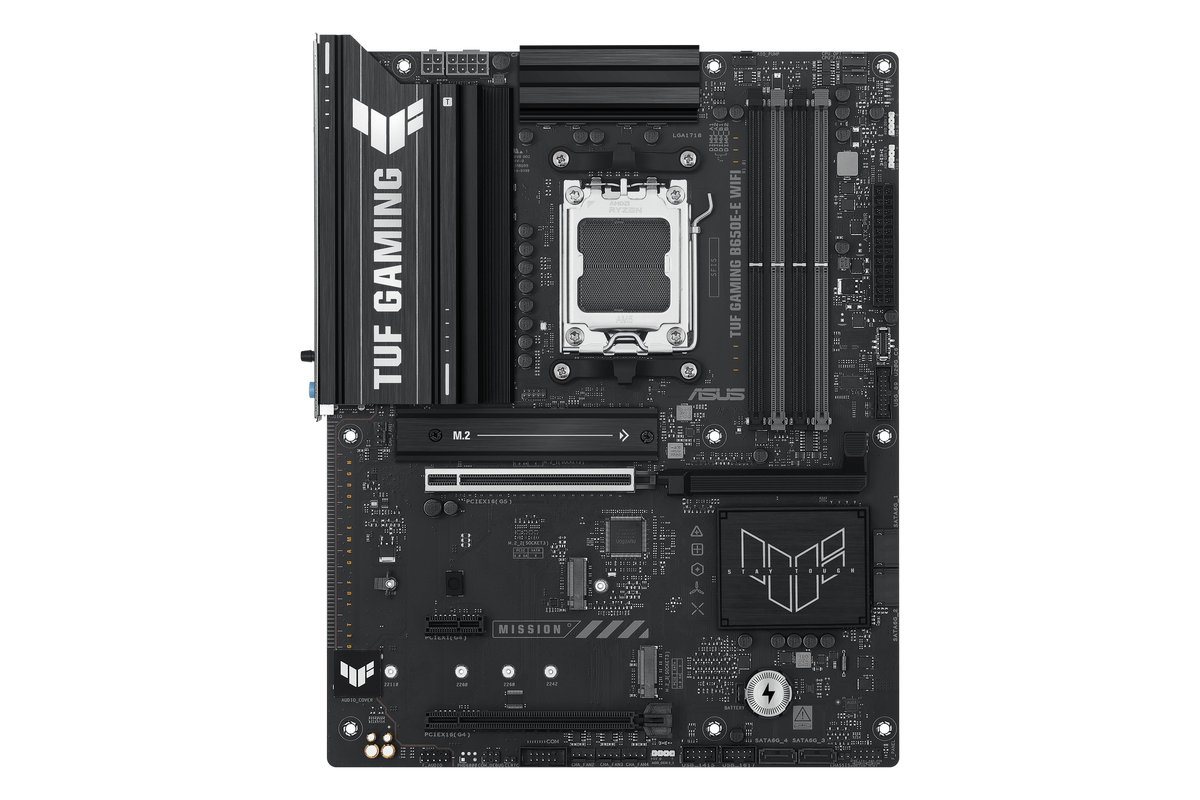

The ASUS TUF GAMING B650E-E WIFI is an AM5 ATX motherboard built on AMD's B650E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM5 · B650E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 8000 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek audio
  • Rear I/O 8 USB (2x USB 10Gbps, 3x USB 5Gbps, 3x USB 2.0) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650E
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650E
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 8000 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part TUF GAMING B650E-E WIFI
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
