ASUS unit, dual-fan cooling, 2.47-slot, 280 mm long. Rated 245 W; ASUS recommends a 750 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

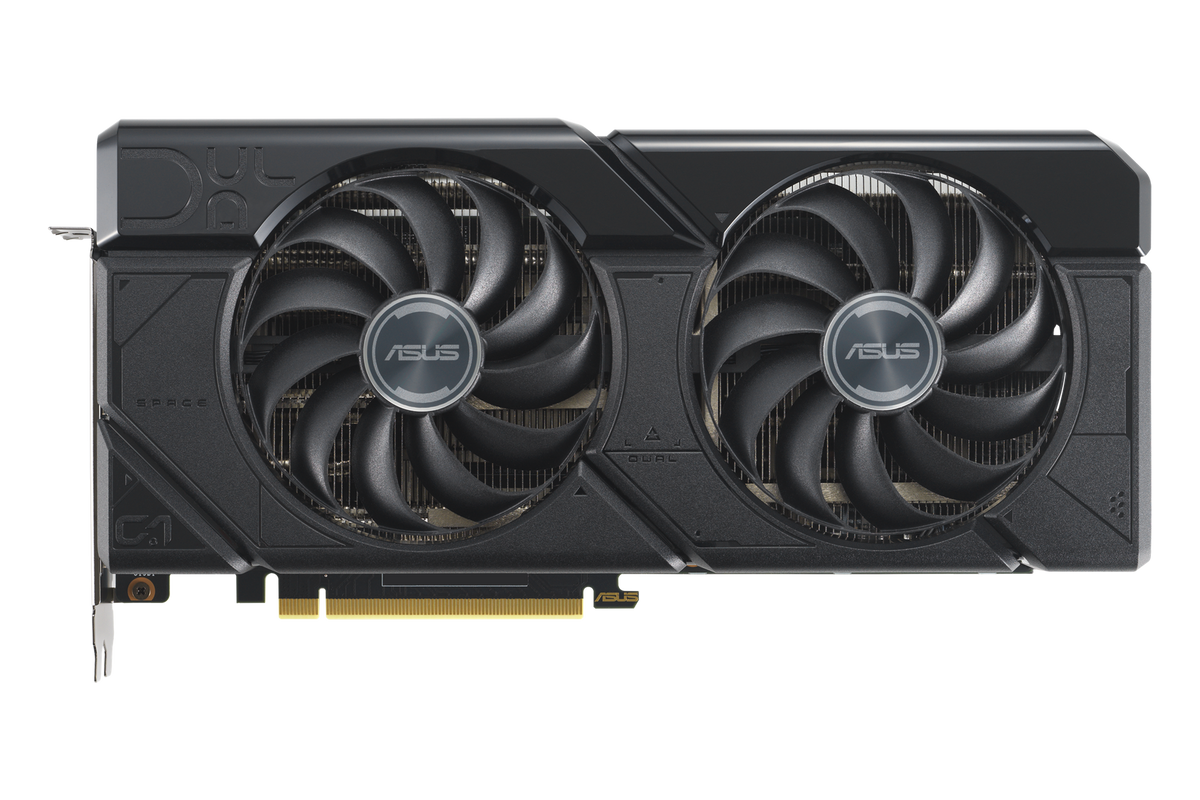

The ASUS DUAL RX 7700 XT OC is a 12 GB GDDR6 graphics card built on AMD's RX 7700 XT with 3,456 stream processors, a 2584 MHz boost clock and 3 display outputs over PCIe 4.0.

  • Memory 12 GB GDDR6 · 192-bit bus · 18 Gbps · 432 GB/s bandwidth
  • Cores 3,456 stream processors · OpenGL 4.6
  • Boost 2584 MHz boost · 2226 MHz game
  • Interface PCIe 4.0 x16 · 3x DisplayPort 2.1 · up to 4 displays at 7680×4320
  • Power 245 W board power · 2x 8-pin · 750 W recommended PSU

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2584 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
3456
STREAM PROCESSORS
245 W
BOARD POWER
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 3456
Boost Clock 2584 MHz
Factory OC Yes
Game Clock 2226 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6
Memory Bus 192-bit
Memory Bandwidth 432 GB/s
Memory Clock 18000 MHz (18 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 245 W
Min PSU 750 W
Power Connectors 2x 8-pin
Cooling Dual Fan
Lighting None
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 3x DisplayPort 2.1
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 280 mm
Slot Width 2.47-slot
Dimensions 279.9 x 133.9 x 49.3 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
