[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASUS unit, triple-fan cooling, 2.9-slot, 320 mm long. ASUS recommends a 1000 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

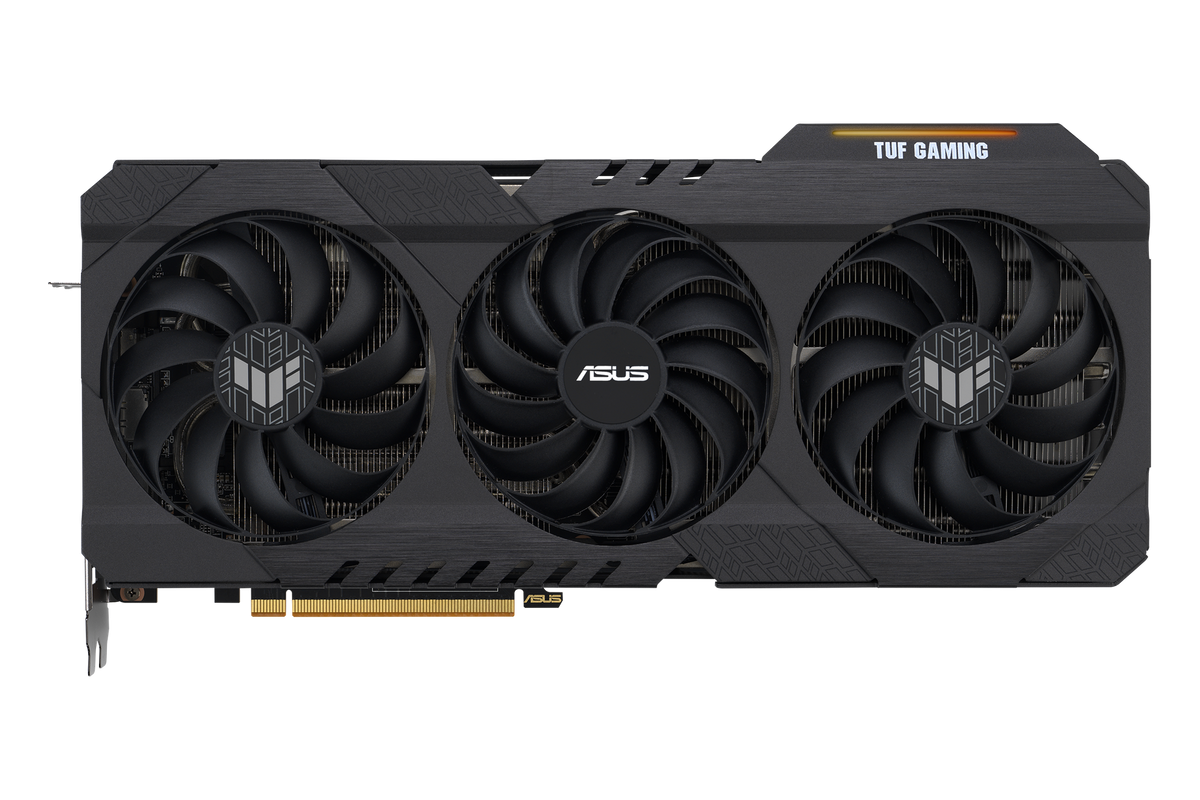

The ASUS TUF GAMING RX 6950 XT OC is a 16 GB GDDR6 graphics card built on AMD's RX 6950 XT with 5,120 stream processors, a 2324 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 16 GB GDDR6 · 256-bit bus · 18 Gbps · 576 GB/s bandwidth
  • Cores 5,120 stream processors · OpenGL 4.6
  • Boost 2324 MHz boost · 2116 MHz game
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2324 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
5120
STREAM PROCESSORS
—
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 5120
Boost Clock 2324 MHz
Game Clock 2116 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 576 GB/s
Memory Clock 18000 MHz (18 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 1000 W
Power Connectors 2x 8-pin
Cooling Triple Fan
Lighting ARGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 320 mm
Slot Width 2.9-slot
Dimensions 320 x 140.2 x 57.8 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
