ASUS unit, dual-fan cooling, 2.7-slot, 295 mm long. Rated 230 W; ASUS recommends a 650 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

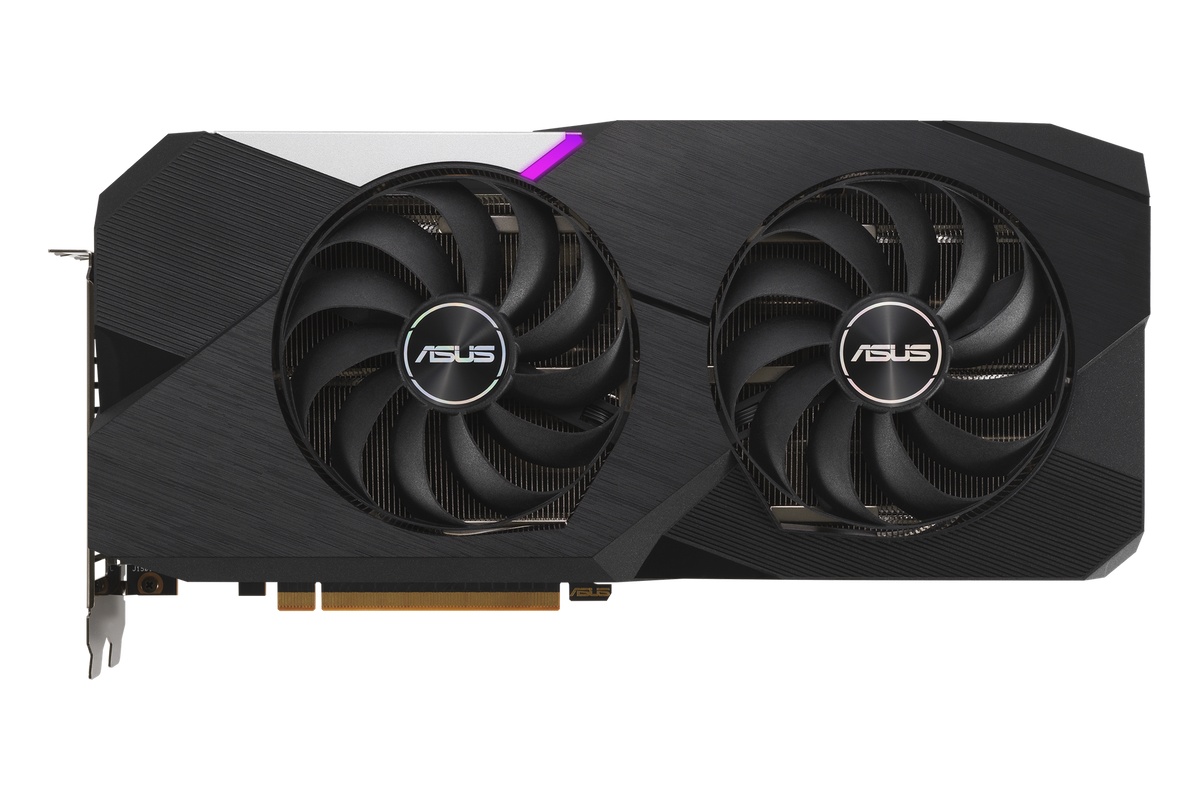

The ASUS DUAL RX 6700 XT OC is a 12 GB GDDR6 graphics card built on AMD's RX 6700 XT with 2,560 stream processors, a 2620 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 12 GB GDDR6 · 192-bit bus · 16 Gbps · 384 GB/s bandwidth
  • Cores 2,560 stream processors · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2620 MHz boost · 2321 MHz base · 2474 MHz game
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320
  • Power 230 W board power · 1x 6-pin, 1 x 8-pin · 650 W recommended PSU

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2620 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
2560
STREAM PROCESSORS
230 W
BOARD POWER
[ PARAMETER TABLE ] // 29 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 2560
Boost Clock 2620 MHz
Game Clock 2474 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6
Memory Bus 192-bit
Memory Bandwidth 384 GB/s
Memory Clock 16000 MHz (16 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 230 W
Min PSU 650 W
Power Connectors 1x 6-pin, 1 x 8-pin
Cooling Dual Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 295 mm
Slot Width 2.7-slot
Form Factor Full-Height/Full-Length
Dimensions 295 x 139 x 55 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync FreeSync
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
