ASUS unit, dual-fan cooling, 2.9-slot, 281 mm long. ASUS recommends a 650 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

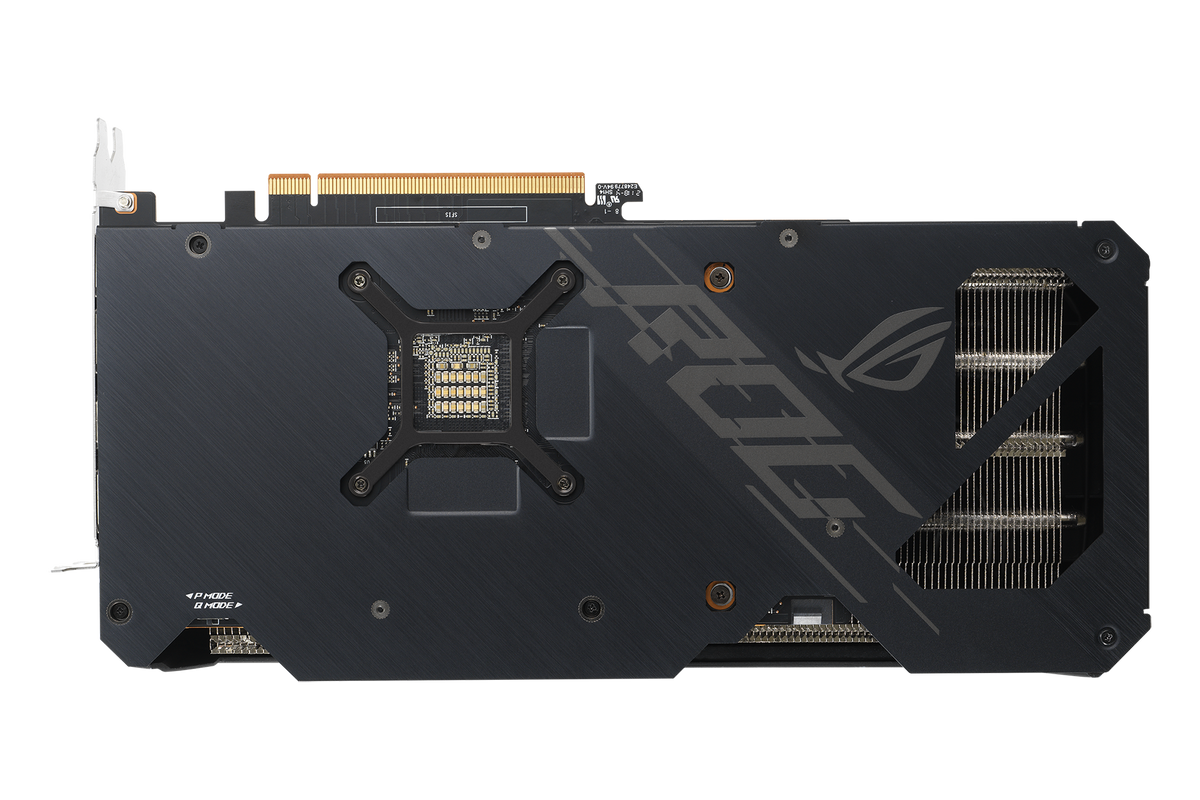

The ASUS ROG STRIX RX 6650 XT OC is an 8 GB GDDR6 graphics card built on AMD's RX 6650 XT with 2,048 stream processors, a 2694 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 8 GB GDDR6 · 128-bit bus · 17.5 Gbps · 280 GB/s bandwidth
  • Cores 2,048 stream processors · OpenGL 4.6
  • Boost 2694 MHz boost · 2523 MHz game
  • Interface PCIe 4.0 x16 · 1x HDMI 2.1, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2694 MHz
BOOST CLOCK
8 GB
VIDEO MEMORY
2048
STREAM PROCESSORS
—
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 2048
Boost Clock 2694 MHz
Game Clock 2523 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 8 GB
Memory Type GDDR6
Memory Bus 128-bit
Memory Bandwidth 280 GB/s
Memory Clock 17500 MHz (17.5 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 650 W
Power Connectors 1x 8-pin
Cooling Dual Fan
Lighting ARGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 281 mm
Slot Width 2.9-slot
Dimensions 281 x 135 x 59 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
