ASUS unit, triple-fan cooling, 3.6-slot, 348 mm long. Rated 360 W; ASUS recommends an 850 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

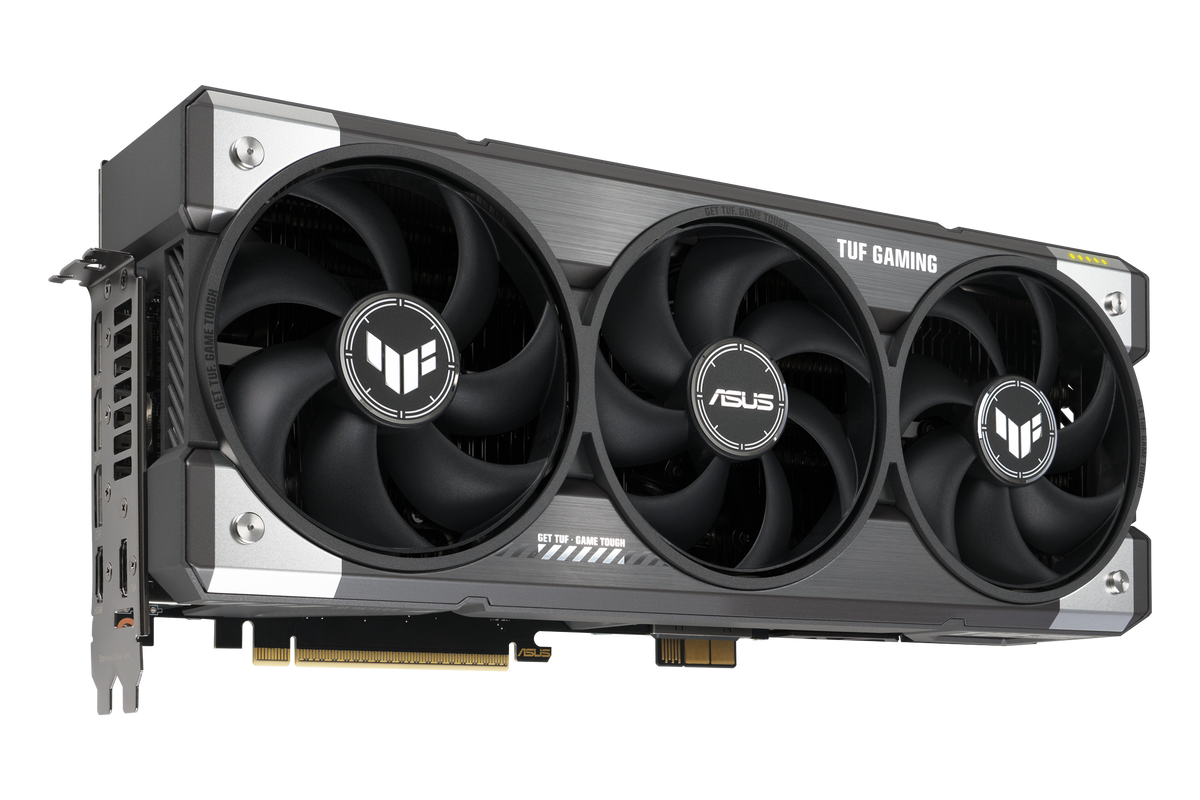

The ASUS TUF RTX 5080 OC is a 16 GB GDDR7 graphics card built on NVIDIA's RTX 5080 with 10,752 CUDA cores, a 2700 MHz boost clock and 5 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR7 · 256-bit bus · 30 Gbps · 960 GB/s bandwidth
  • Cores 10,752 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2700 MHz boost · 2300 MHz base
  • Interface PCIe 5.0 x16 · 2x HDMI 2.1b, 3x DisplayPort 2.1b · up to 4 displays at 7680 x 4320
  • Power 360 W board power · 1x 16-pin, Graphics card high-power (GC-HPWR) gold finger · 850 W recommended PSU

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2700 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
10752
CUDA CORES
360 W
BOARD POWER
[ PARAMETER TABLE ] // 31 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
Process Node TSMC 4N
CUDA Cores 10752
Boost Clock 2700 MHz
Factory OC Yes
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR7
Memory Bus 256-bit
Memory Bandwidth 960 GB/s
Memory Clock 30000 MHz (30 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 360 W
Min PSU 850 W
Power Connectors 1x 16-pin, Graphics card high-power (GC-HPWR) gold finger
Cooling Triple Fan
Lighting ARGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1b, 3x DisplayPort 2.1b
Max Resolution 7680 x 4320
Max Monitors 4
HDCP 2.3
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 348 mm
Slot Width 3.6-slot
Form Factor Full-Height/Full-Length
Dimensions 348 x 146 x 72 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
