[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASUS unit, triple-fan cooling, 3.5-slot, 358 mm long. ASUS recommends a 1000 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

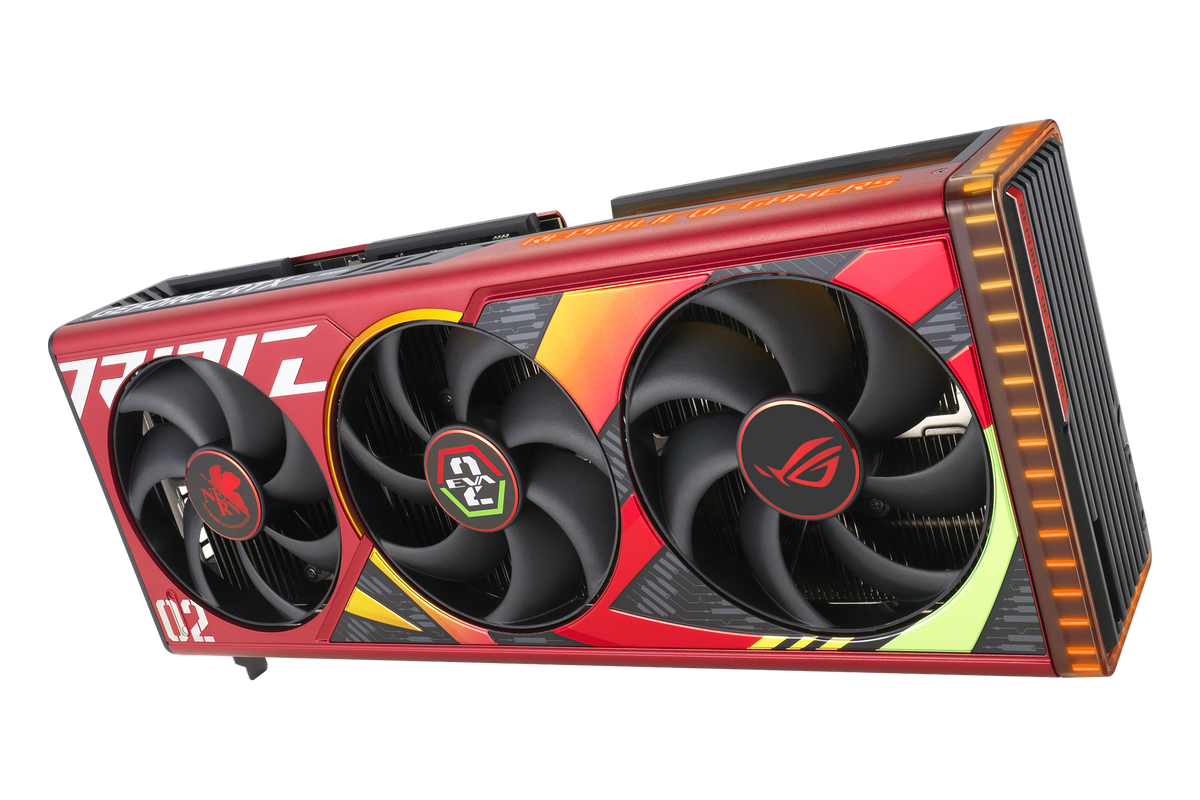

The ASUS ROG STRIX RTX 4090 OC is a 24 GB GDDR6X graphics card built on NVIDIA's RTX 4090 with 16,384 CUDA cores, a 2610 MHz boost clock and 5 display outputs over PCIe 4.0.

  • Memory 24 GB GDDR6X · 384-bit bus · 21 Gbps · 1008 GB/s bandwidth
  • Cores 16,384 CUDA cores · OpenGL 4.6
  • Boost 2610 MHz boost
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1a, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2610 MHz
BOOST CLOCK
24 GB
VIDEO MEMORY
16384
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 4000
CUDA Cores 16384
Boost Clock 2610 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 24 GB
Memory Type GDDR6X
Memory Bus 384-bit
Memory Bandwidth 1008 GB/s
Memory Clock 21000 MHz (21 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 1000 W
Power Connectors 1x 16-pin
Cooling Triple Fan
Lighting ARGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1a, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 358 mm
Slot Width 3.5-slot
Dimensions 357.6 x 149.3 x 70.1 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
