ASUS unit, triple-fan cooling, 3.65-slot, 348 mm long. ASUS recommends a 750 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

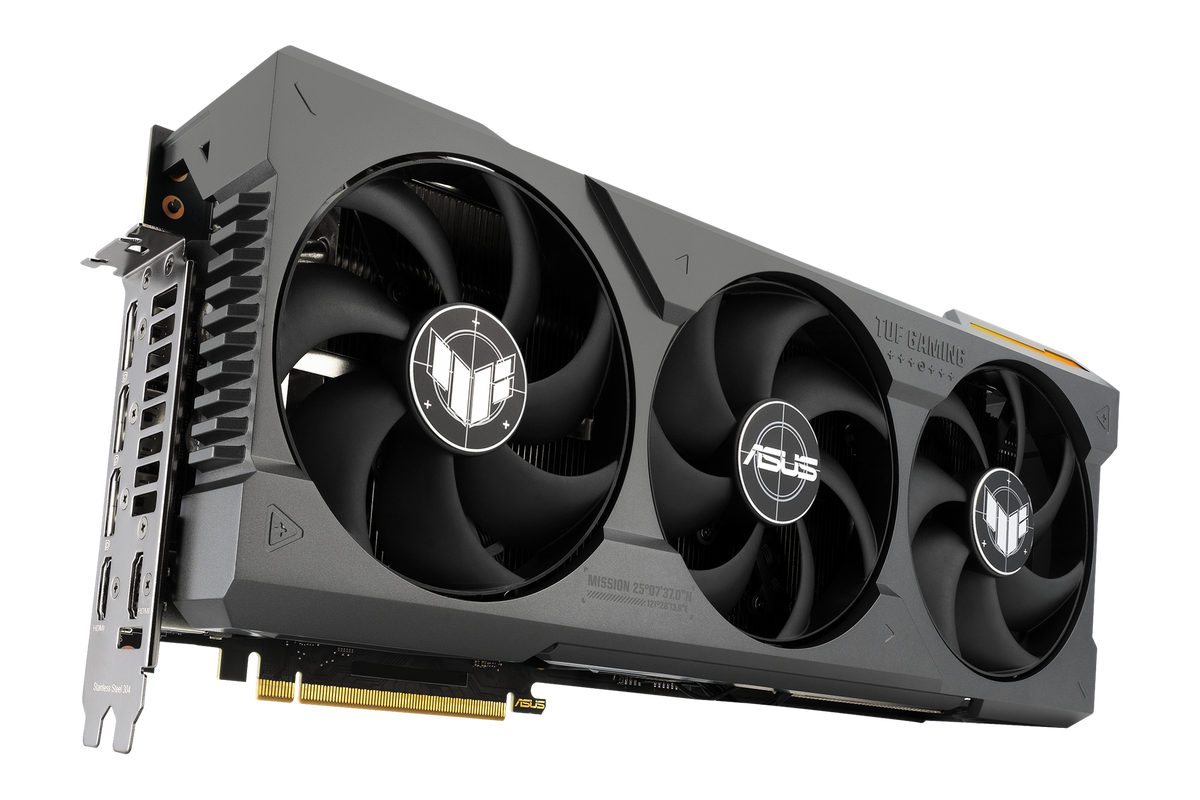

The ASUS TUF GAMING RTX 4080 is a 16 GB GDDR6X graphics card built on NVIDIA's RTX 4080 with 9,728 CUDA cores, a 2505 MHz boost clock and 2 display outputs over PCIe 4.0.

  • Memory 16 GB GDDR6X · 256-bit bus · 22.4 Gbps · 716.8 GB/s bandwidth
  • Cores 9,728 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2505 MHz boost
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1a · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2505 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
9728
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 4000
CUDA Cores 9728
Boost Clock 2505 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6X
Memory Bus 256-bit
Memory Bandwidth 716.8 GB/s
Memory Clock 22400 MHz (22.4 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 750 W
Power Connectors 1x 16-pin
Cooling Triple Fan
Lighting ARGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1a
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 348 mm
Slot Width 3.65-slot
Form Factor Full-Height/Full-Length
Dimensions 348.2 x 150 x 72.6 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
