ASUS unit, dual-fan cooling, 2.7-slot, 269 mm long. ASUS recommends a 750 W supply.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

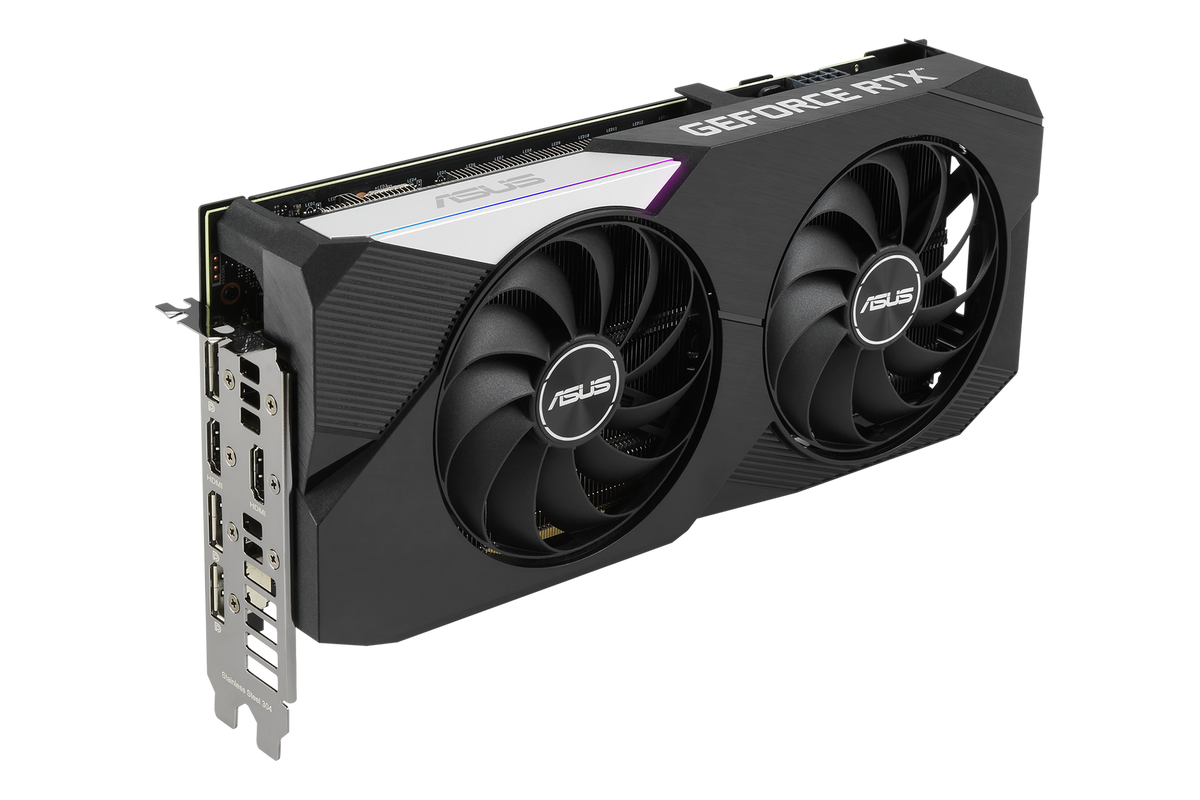

The ASUS DUAL RTX 3060 Ti is an 8 GB GDDR6 graphics card built on NVIDIA's RTX 3060 Ti with 4,864 CUDA cores, a 1665 MHz boost clock and 2 display outputs over PCIe 4.0.

  • Memory 8 GB GDDR6 · 256-bit bus · 14 Gbps · 448 GB/s bandwidth
  • Cores 4,864 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 1665 MHz boost
  • Interface PCIe 4.0 x16 · 2x HDMI 2.1 · up to 4 displays at 7680×4320

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
1665 MHz
BOOST CLOCK
8 GB
VIDEO MEMORY
4864
CUDA CORES
—
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 3000
CUDA Cores 4864
Boost Clock 1665 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 8 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 448 GB/s
Memory Clock 14000 MHz (14 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Min PSU 750 W
Power Connectors 1x 8-pin
Cooling Dual Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1
Max Resolution 7680×4320
Max Monitors 4
HDCP 2.3
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 269 mm
Slot Width 2.7-slot
Form Factor Full-Height/Full-Length
Dimensions 269 x 136 x 52 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
