// ORBITAL INVENTORY

ASUS board, 305 x 277 mm, 12 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

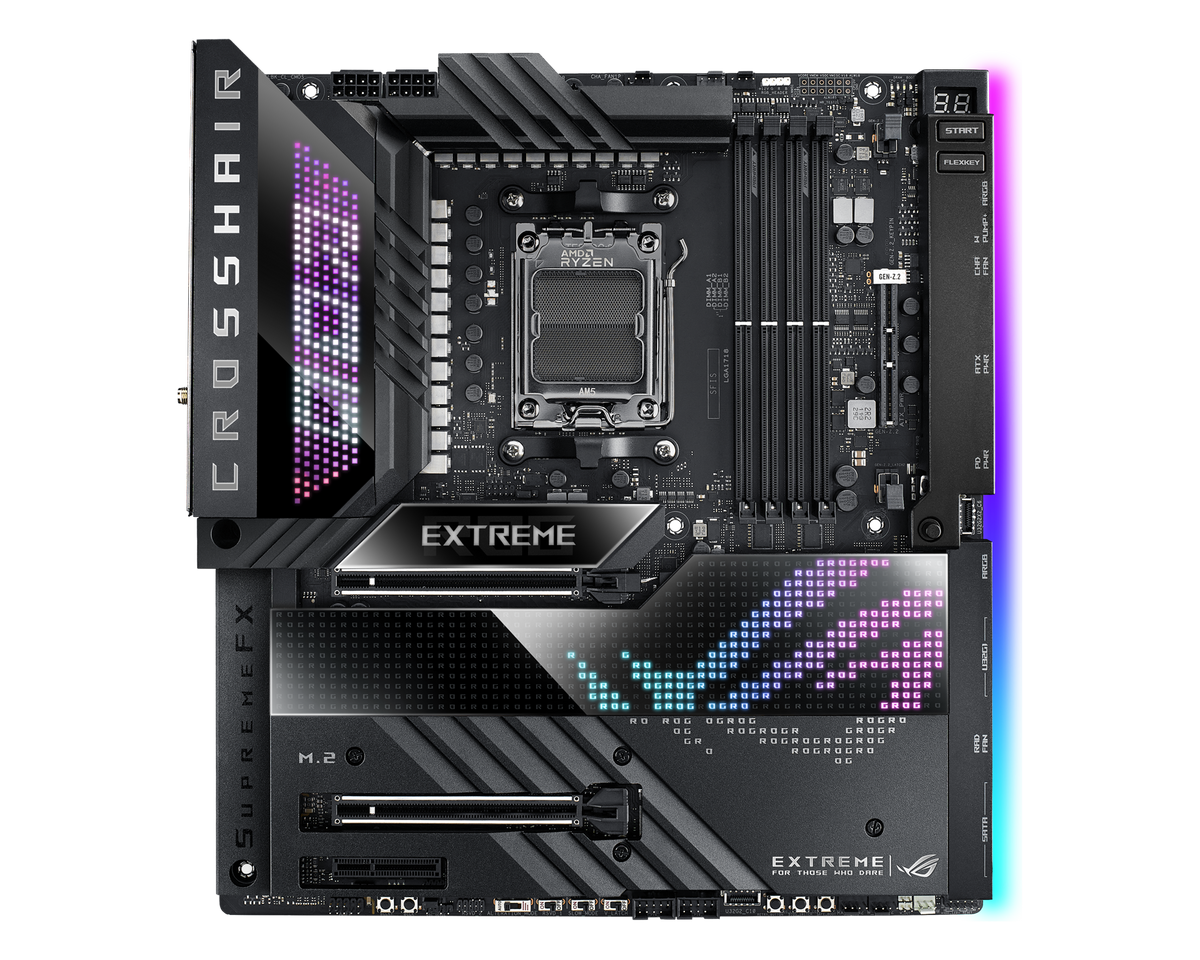

The ASUS ROG CROSSHAIR X670E EXTREME is an AM5 E-ATX motherboard built on AMD's X670E chipset, with 4 DDR5 DIMM slots for up to 192 GB, 5 M.2 slots, 10GbE LAN and Wi-Fi 6E.

  • Platform AM5 · X670E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 192 GB · DDR5-4800 to 6400 MT/s (OC)
  • Expansion 2x PCIe 5.0 x16 · 5x M.2 · 6x SATA 6Gb/s
  • Connectivity 10GbE LAN (Intel 2.5GbE + Marvell AQtion 10GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC4082 audio
  • Rear I/O 12 USB (2x USB4, 1x USB 20Gbps, 9x USB 10Gbps) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X670E
CHIPSET
4 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 28 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X670E
CPU Platform AMD
Form Factor E-ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 192 GB
Max OC Speed DDR5-4800 to 6400 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 5x M.2
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps, 2.5 Gbps
LAN Chip Intel 2.5GbE + Marvell AQtion 10GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Audio Realtek ALC4082
[ PHYSICAL ] SPEC·05
Dimensions 305 x 277 mm
Color Black
Brand ASUS
Condition NEW
MFR Part ROG CROSSHAIR X670E EXTREME
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
