ASUS board, 305 x 244 mm, 11 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

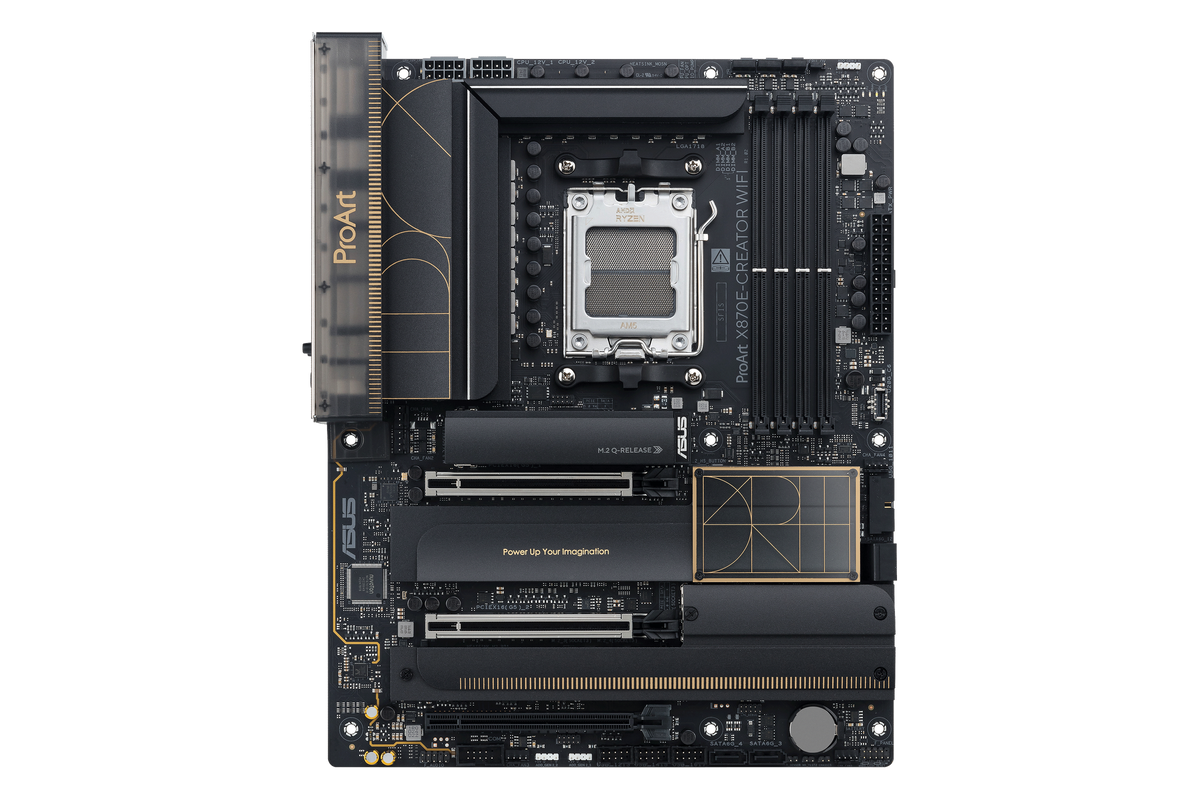

The ASUS PROART X870E-CREATOR WIFI is an AM5 ATX motherboard built on AMD's X870E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform AM5 · X870E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 8000 MT/s (OC)
  • Expansion 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (Marvell AQtion 10GbE + Intel 2.5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC1220P audio
  • Rear I/O 11 USB (2x USB4 40Gbps, 1x USB 20Gbps, 7x USB 10Gbps, 1x USB 2.0) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870E
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870E
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 8000 MT/s (OC)
Memory Profiles AMD EXPO
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps, 2.5 Gbps
LAN Chip Marvell AQtion 10GbE + Intel 2.5GbE
Wi-Fi Wi-Fi 7
Bluetooth 5.4
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC1220P
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part PROART X870E-CREATOR WIFI
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
