[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASUS board, 244 x 244 mm, 4 rear USB ports. Supports Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

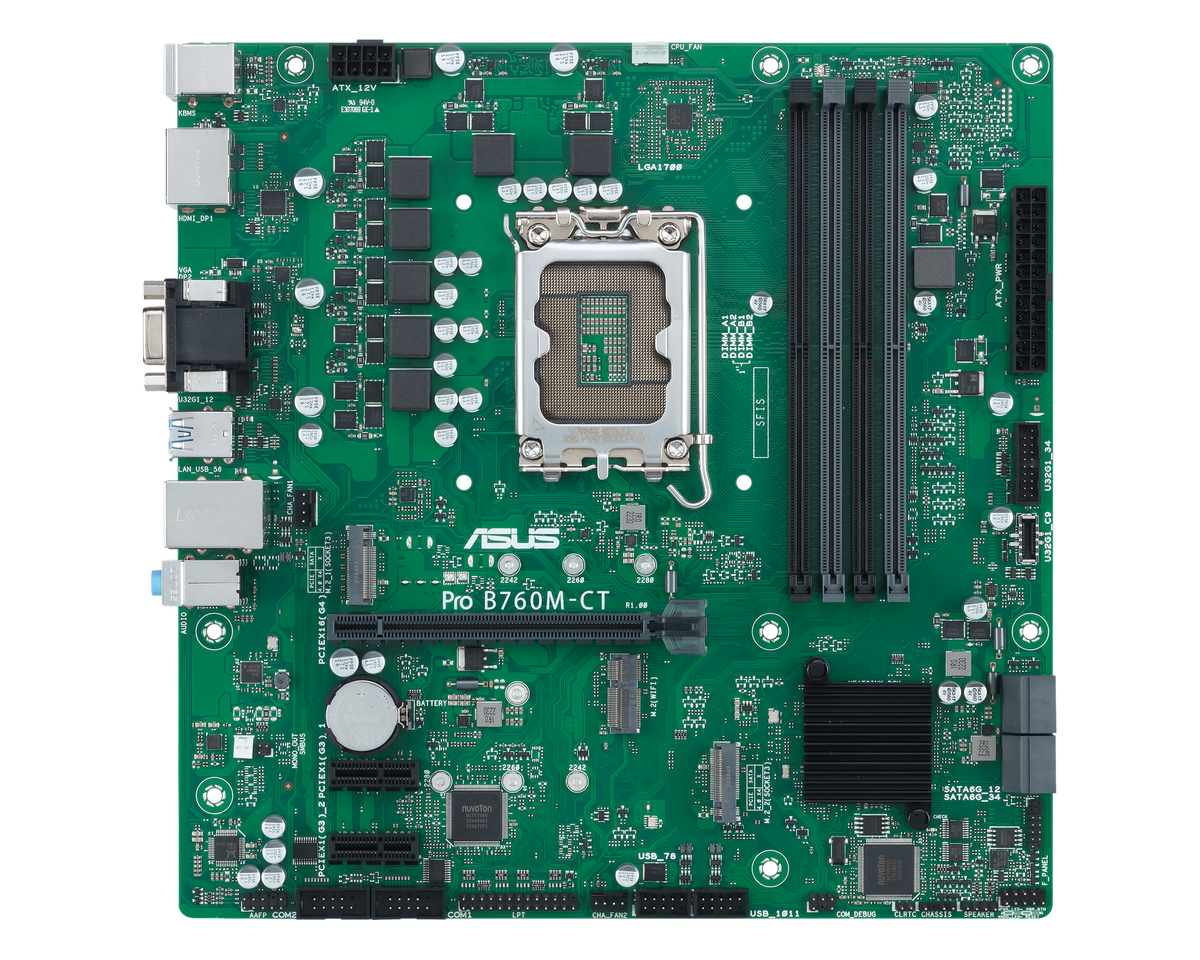

The ASUS PRO B760M-CT-CSM is an LGA1700 mATX motherboard built on Intel's B760 chipset, with 4 DDR5 DIMM slots for up to 192 GB, 2 M.2 slots and 1GbE LAN.

  • Platform LGA1700 · B760 chipset · Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Memory 4x DDR5 DIMM · up to 192 GB · DDR5-4800 to 6200 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16 · 2x M.2 (2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Intel 1GbE) · Realtek audio
  • Rear I/O 4 USB (2x USB 5Gbps, 2x USB 2.0) · 2x DisplayPort, 1x HDMI

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B760
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B760
CPU Platform Intel
Form Factor mATX
CPU Support Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 192 GB
Max OC Speed DDR5-4800 to 6200 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2 (2x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Intel 1GbE
Wi-Fi None
Display Outputs 2x DisplayPort, 1x HDMI
Audio Realtek
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part PRO B760M-CT-CSM
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
