ASUS board, 305 x 234 mm, 6 rear USB ports.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

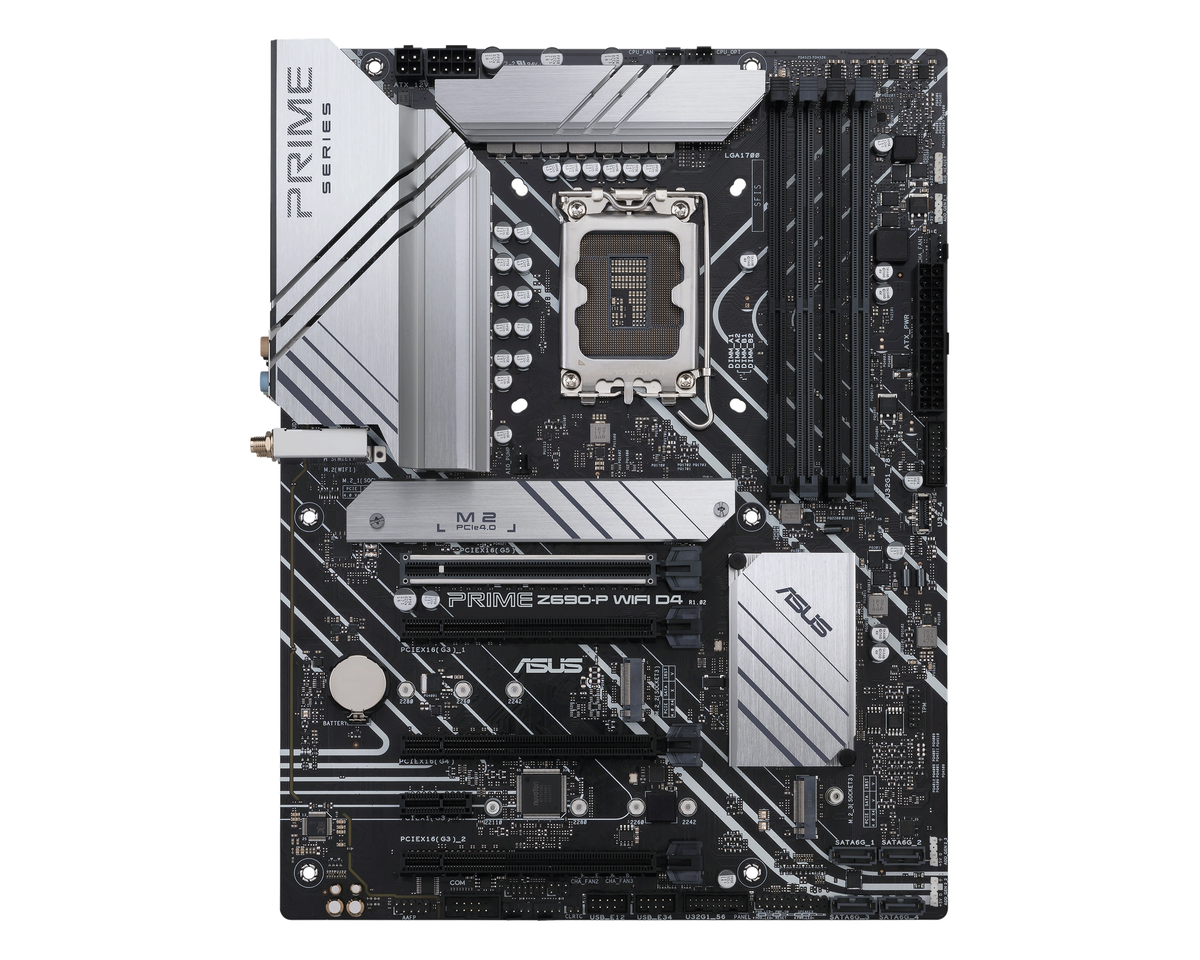

The ASUS PRIME Z690-P-WIFI-D4 is an LGA1700 ATX motherboard built on Intel's Z690 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6.

  • Platform LGA1700 · Z690 chipset
  • Memory 4x DDR4 DIMM · up to 128 GB
  • Expansion 2x PCIe 3.0 x16 · 3x M.2 (3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 6 · Bluetooth 5.2 · Realtek audio
  • Rear I/O 6 USB (1x USB 20Gbps, 1x USB 10Gbps, 2x USB 5Gbps, 2x USB 2.0) · 1x DisplayPort, 1x HDMI

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z690
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 27 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z690
CPU Platform Intel
Form Factor ATX
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 3.0 x16
PCIe Gen 3.0
M.2 Slots 3x M.2 (3x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 6
Bluetooth 5.2
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek
[ PHYSICAL ] SPEC·05
Dimensions 305 x 234 mm
Brand ASUS
Condition NEW
MFR Part PRIME Z690-P-WIFI-D4
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
