ASUS board, 305 x 244 mm, 10 rear USB ports. Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

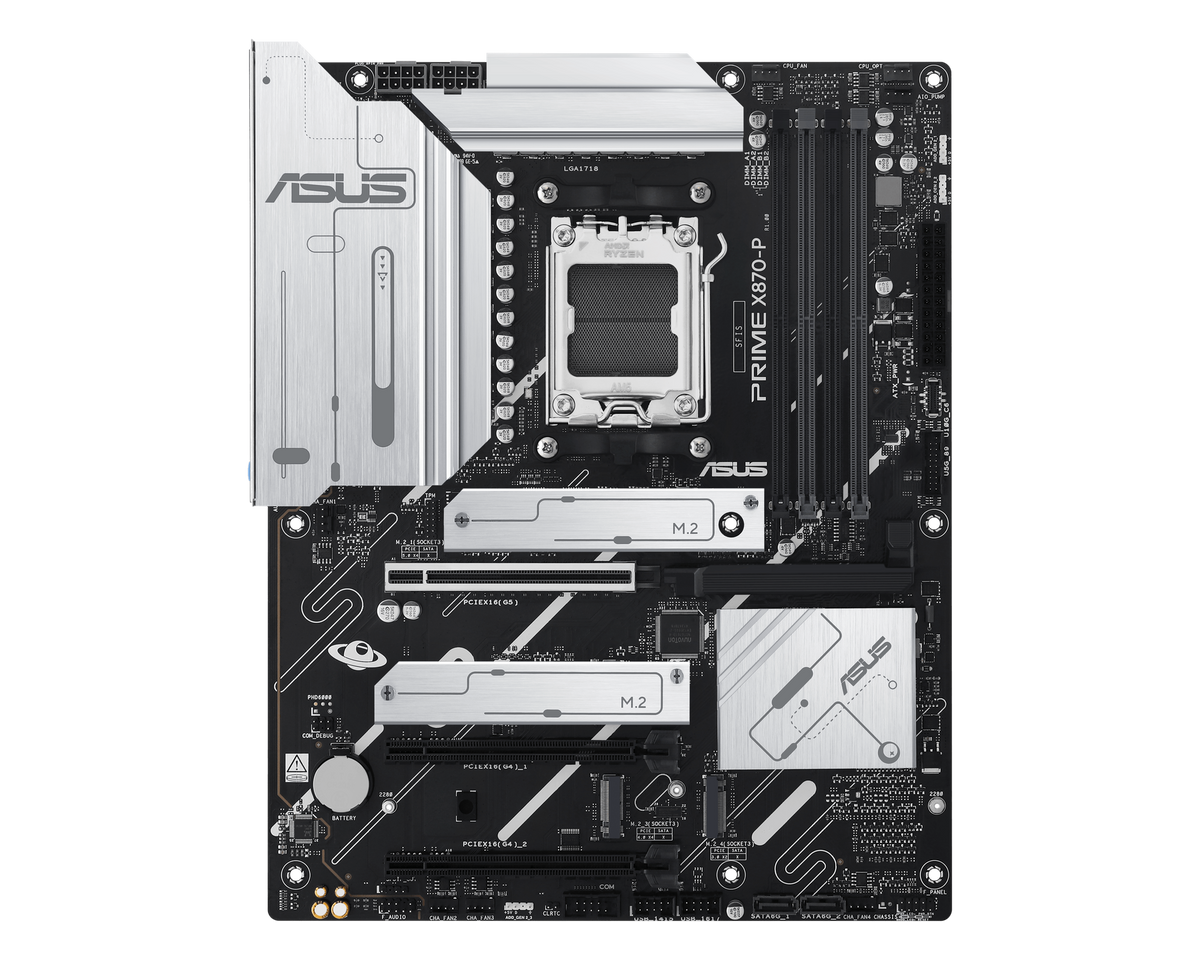

The ASUS PRIME X870-P-CSM is an AM5 ATX motherboard built on AMD's X870 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots and 2.5GbE LAN.

  • Platform AM5 · X870 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-8000 to 8000 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 · 4x M.2 (1x PCIe 5.0, 2x PCIe 4.0, 1x PCIe 3.0) · 2x SATA 6Gb/s
  • Connectivity 2.5GbE LAN
  • Rear I/O 10 USB (2x USB4 40Gbps, 1x USB-A 10Gbps, 3x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI 2.1

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 25 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-8000 to 8000 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 4x M.2 (1x PCIe 5.0, 2x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 5.0
SATA Ports 2x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
Wi-Fi None
Display Outputs 1x HDMI 2.1
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand ASUS
Condition NEW
MFR Part PRIME X870-P-CSM
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
